SUN公司于1970年成立于美國，是世界優質的高性能液壓螺紋插裝閥以及集成閥塊的設計和制造公司，產品集成在流體動力系統中，用以實現力，速度和運動的控制。產品廣泛應用于移動，工業機械和設備等領域。
SUN主營產品：SUN插裝閥、SUN壓力控制閥、SUN流量控制閥、SUN負載保持閥、SUN方向閥、SUN電比例閥、SUN電磁控制閥、SUN順序閥、SUN單向閥、SUN平衡閥、SUN溢流閥、SUN減壓閥等SUN平衡滑閥。。
SUN減壓閥PRDP-MDN技術參數
Cavity | T-11A |
Series | 1 |
Capacity | 5 gpm |
Maximum Operating Pressure | 5000 psi |
Maximum Valve Leakage at 110 SUS (24 cSt) | 2.5 in3/min. |
Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
Solenoid Tube Diameter | .75 in. |
Valve Hex Size | 7/8 in. |
Valve Installation Torque | 30 - 35 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight (with coil) | 1.20 lb |
Seal kit - Cartridge | Buna: 990511007 |
Seal kit - Cartridge | Viton: 990511006 |
Seal and nut kit - Coil | Viton: 990770006 |
Model Weight | 0.72 lb. |
SUN減壓閥PRDP-MDN產品介紹
配置有 EPDM 密封件的濾芯適用于使用磷酸酯流體的系統。接觸石油基流體、油脂和潤滑劑會損壞密封件。
適用于蓄能器回路，因?yàn)闆](méi)有先導控制流量會導致次級回路泄漏減少。
直接作用概念在受污染的系統中提供高度可靠的操作，尤其是在死角條件下。
所有三端口減壓和減壓/泄壓閥芯在物理上是可互換的（即相同的流動路徑，相同的腔體對于給定的框架尺寸）。在考慮安裝配置時，有時建議將全容量回流管（端口 3）與減壓/溢流筒一起使用。
從減壓（端口 1）到入口（端口 2）的完全反向流動可能導致主閥芯關閉。如果回路中需要反向自由流動，請考慮在回路中添加一個單獨的止回閥。
采用 Sun 浮動式結構，可有效地減少由于安裝扭矩過大和/或型腔/墨盒加工變化而導致內部零件粘合的可能性。
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

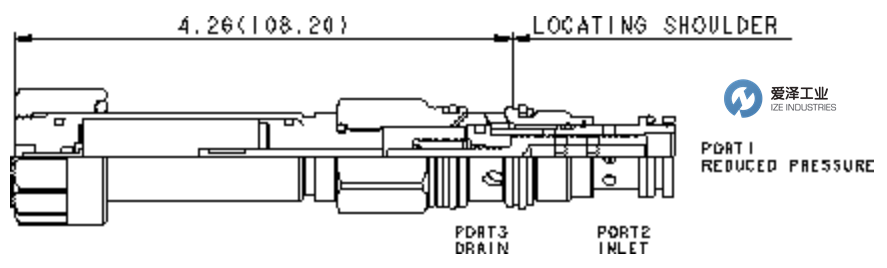

SUN減壓閥PRDP-MDN技術尺寸
SUN減壓閥PRDP系列其他常用型號：
SUN PRDP-MDN
SUN PRDP-MDV
SUN PRDP-MDE
SUN PRDP-MEN
SUN PRDP-MEV
SUN PRDP-MEE
SUN PRDP-MBN
SUN PRDP-MBV
SUN PRDP-MBE
SUN pressure reducing valve NEW + ORIGINAL+ ONE YEAR WARRANTY
