EATON致力于提供高效節能的解決方案，幫助客戶更有效的管理電力、液壓和機械動力，EATON公司參與許多工業，包括電源品質、輸配電及控制系統；工業設備和移動工程機械所需的液壓動力元件、系統和服務；航空航天所需的燃油、液壓和氣動系統；以及幫助卡車和汽車提升性能、燃油經濟性和安全性的動力及傳動系統。
EATON的主要產品有變速箱，剎車盤，液壓比例閥，同步輪，單向閥，電源，傳感器，齒輪泵，比例閥等等。
EATON安全閥RV11-12系列技術參數
Performance data | |
Ratings and specifications | |
Performance data is typical with fluid at 21,8 cSt (105 SUS) and 49° C (120° F) | |
Typical application pressure | 350 bar (5000 psi) |
Cartridge fatigue pressure (infinite life) | 350 bar (5000 psi) |
Rated flow | 190 L/min (50 USgpm) |
Reseat pressure | More than 90% of crack pressure |
Hysteresis | Less than 3 bar (45 psi) |
Internal leakage, port 1 to port 2 | 131 cc/min (8cu in/min@350 bar) (5000 psi) |
Overshoot | Less than 20% of max. press. range with flow step of 30 USgpm at pressure rise rate of 100,000 psi/sec |
Repeatability | +/- 1% maximum pressure range |
Cavity | C–12–2 or C-12–2U |
Standard housing materials | Aluminum or steel |
Temperature range | -40° to 120°C (-40° to 248°F) |
Fluids | All general purpose hydraulic fluids such as: |
Filtration | Cleanliness Code 18/16/13 |
Weight cartridge only | 0,3 kg (0.68 lbs) |
Seal kits | 02–165889 Buna–N |
EATON安全閥RV11-12系列介紹
操作
當進口壓力超過閥門設定值時，先導部分打開，使小流量通過主閥芯的節流孔。隨后的降壓使閥芯移動到一個輕彈簧上，打開套筒上的徑向孔環，允許泄流入罐。
特點
高精度的先導操作設計。硬化的工作部件被賦予長期，可靠，無故障的使用壽命。
Operation
When the inlet pressure exceeds the setting of the valve, the pilot section opens, causing a small flow across the orifice in the main spool. The subsequent pressure drop moves the spool against a light spring opening a ring of radial holes in the sleeve, allowing relief flow to tank.
Features
High accuracy of pilot operated design. Hardened working parts give long, reliable, trouble-free life .

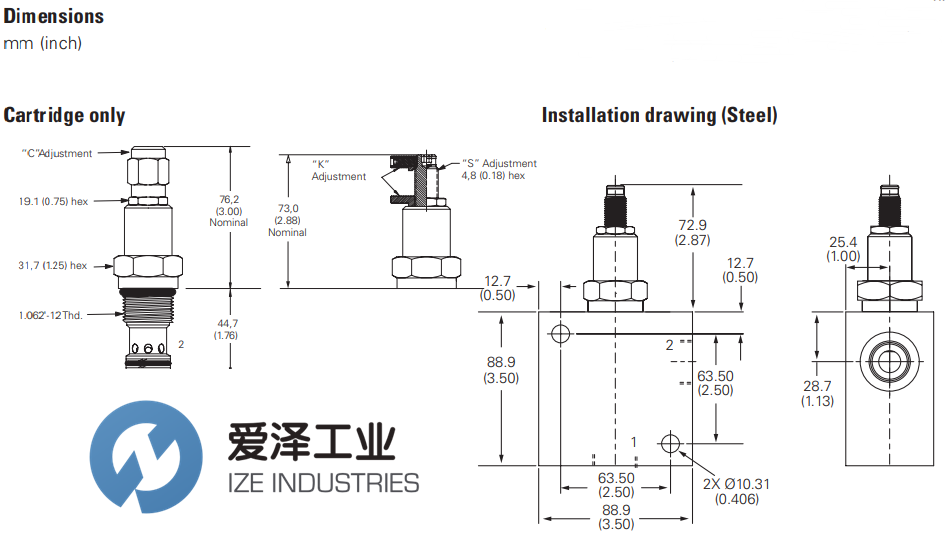

EATON安全閥RV11-12系列技術尺寸

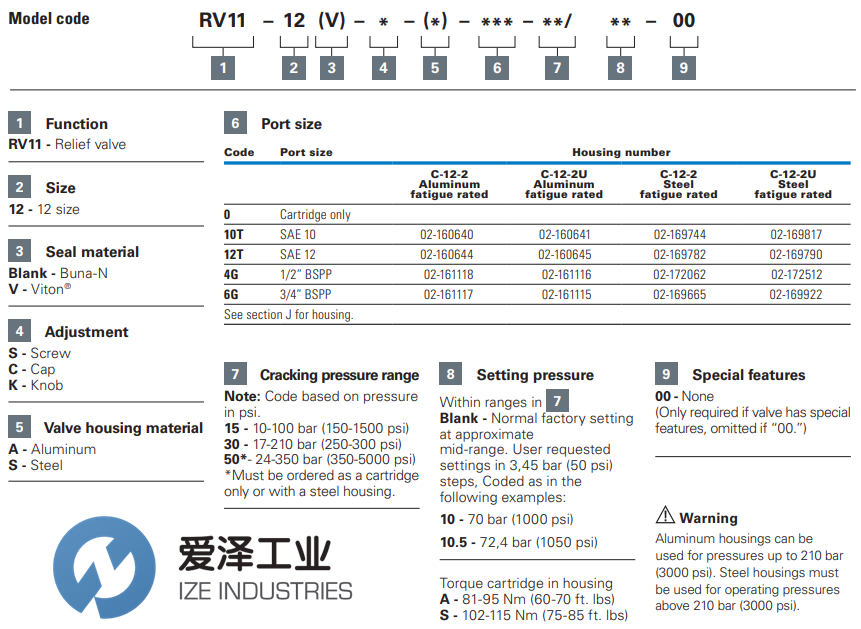

EATON安全閥RV11-12系列選型
EATON安全閥RV11-12系列其他常用型號：
EATON RV11-12-S-0-30/
EATON RV11-12-S-0-30/10
EATON RV11-12-S-0-50/33
EATON RV11-12-S-0-30/30
EATON RV11-12-S-0-50/35
EATON RV11-12-S-0-15/
EATON RV11-12-C-0-15/
EATON RV11 12 S 0 50/35 01
EATON RV11-12-C-A12T-30/
EATON RV11-12-S-A-12T-15/3
EATON RV11-12-K-0-50/
EATON RV11-12-C-0-30/
EATON RV11-12-C-0-50/30
EATON RV11-12-K-0-15/
EATON RV11-12-S-0-15/5
EATON RV11-12-C-0-50/
EATON RV11-12-S-0-50
EATON Relief valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EATON安全閥RV11-12-S-0-50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EATON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
EATON安全閥RV11-12系列RV11-12-S-0-50技術參數及選型
