OIL CONTROL成立于1974年諾南托拉(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。從初的 overcentre閥起重機和高空作業平臺開始，公司開始成功地處理與其他液壓機械的兼容應用中，主要應用于負載移動機械的控制，如遠程處理，挖土機，絞車等工程機械。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VED-16-08A-32系列技術參數
Technical data | |
General | |
Weight | 0.13 kg (0.29 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure up to | 280 bar (4060 psi) * |
Max. fl ow | up to 20 l/min (5 gpm) |
Max. internal leakage at 230 bar | 40 cm3/min. (2.4 cu.in/min.) |
Fatigue cycle life | 1 million cycles at 250 bar |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 34 - 39 Nm (25 - 29 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Cavity | CA-08A-3N |
Seal kit | code RG08A3010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Admitted voltage tolerance: | -10% / +25% of nominal voltage at 60°C amb. T |
Power consumption | 20 W |

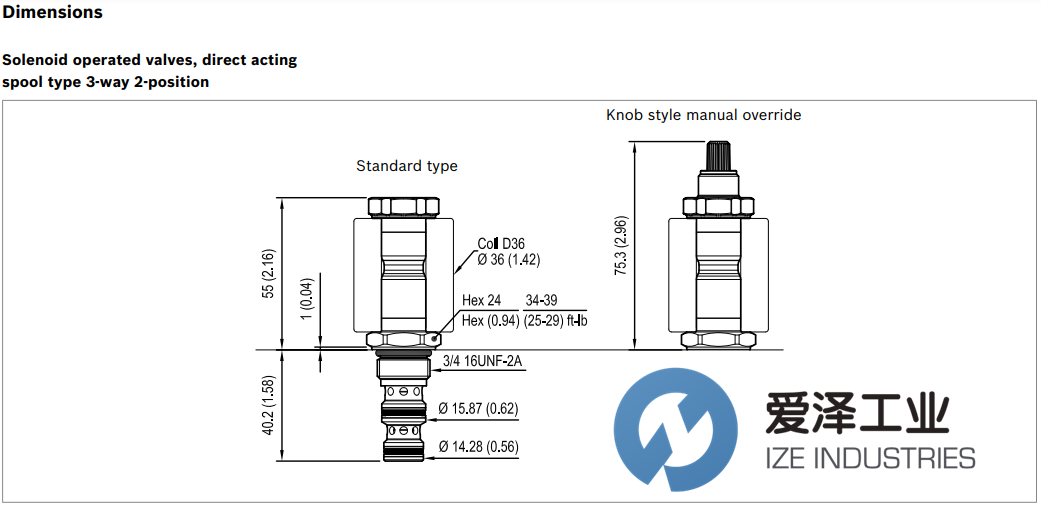

REXROTH OIL CONTROL閥VED-16-08A-32系列技術尺寸

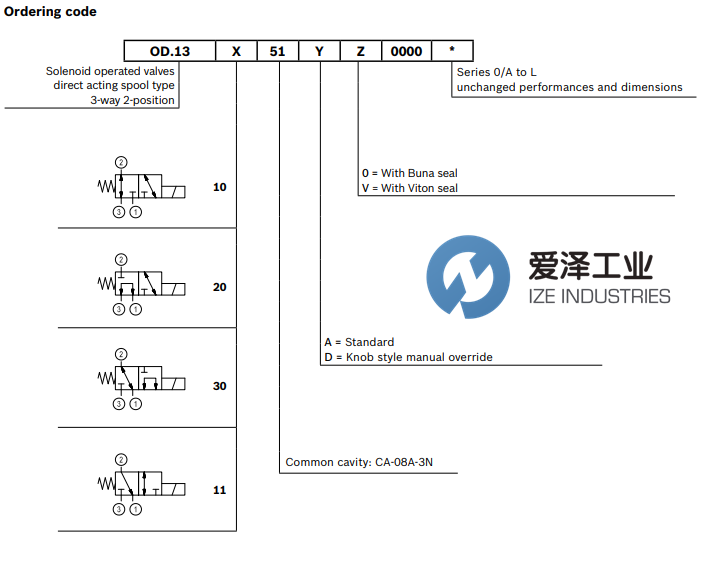

REXROTH OIL CONTROL閥VED-16-08A-32系列選型
REXROTH OIL CONTROL閥VED-16-08A-32系列其他常用型號：
REXROTH OIL CONTROL OD131051A000000 R930058342
REXROTH OIL CONTROL OD131051D000000 R930058707
REXROTH OIL CONTROL OD131151A000000 R930058704
REXROTH OIL CONTROL OD131151D000000 R930058708
REXROTH OIL CONTROL OD132051A000000 R930058703
REXROTH OIL CONTROL OD132051D000000 R930058709
REXROTH OIL CONTROL OD133051A000000 R930058702
REXROTH OIL CONTROL OD133051D000000 R930058710
REXROTH OIL CONTROL Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD131151A000000 R930058704的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD131151A000000 R930058704技術參數
