自1912年FRAMOMORAT成立以來，齒輪和驅動工程一直處于艾森巴赫公司總部的持續發展?fàn)顟B(tài)。FRAMOMORAT是一家為許多行業提供高質量驅動解決方案的全球運營商。
主要經營產品有：
齒輪技術
蝸輪組
行星齒輪
滑動減速電機Compacta
線性執行器Mini
PushPull鏈?zhǔn)絃inearChain
定制工程驅動器。
FRAMOMORAT執行器MINI01系列技術參數
Standard | Options |
100 mm stroke length | AC motors |
Mounting version A | Motors with special voltage upon request |
Thermal protection | 4 mounting versions |
Splash-proof IP54 | Special stroke length up to 11.8 inch |
Integrated limit switches | With force-dependent shut off |
Maintenance-free | With adjustment ring |
Lifetime lubrication | With adjustable rod end |
3-phase motor | With potentiometer |
Drive completely in stainless steel | With encoder |
With single disk spring-activated brake |
FRAMOMORAT執行器MINI01系列介紹
帶集成限位器的Mini 01直線執行器提供高達307英寸/分鐘的提升速度和高達360磅的提升力，具體取決于傳動比。直線執行器設計緊湊，非常適合安裝條件狹窄的換向模式應用。標準驅動器具有防濺保護 (IP54)，可選防噴射 (IP65)。附加選項大大增加了應用程序選項的數量。
The Mini 01 linear actuator with integrated limit stop provides a lifting speed of up to 307 in/min and a lifting force of up to 360 lbs, depending on the gear ratio. The linear actuator has a compact design, making it ideal for applications in reversing mode with narrow installation conditions. Standard drives are splash-protected (IP54), optionally jet-protected (IP65). Additional options increase the number of application options substantially.
FRAMOMORAT執行器MINI01系列選型
FRAMOMORAT執行器MINI01系列其他常用型號：
FRAMOMORAT MINI01 D/A1500-2-100 HUB 100MM 1500N
FRAMOMORAT Mini 01-D/A-1500-2-100-KGK/O-P
FRAMOMORAT MINI01-D/A-4475
FRAMOMORAT Mini01 D/C-1000-15-85
FRAMOMORAT Mini01-D/A-1500-2-100-O/O+P
FRAMOMORAT MINI01D/C1000-15-85-V+S/B (8-2001-PC01)
FRAMOMORAT actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FRAMOMORAT執行器MINI01D/C1000-15-85-V+S/B (8-2001-PC01)的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FRAMOMORAT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

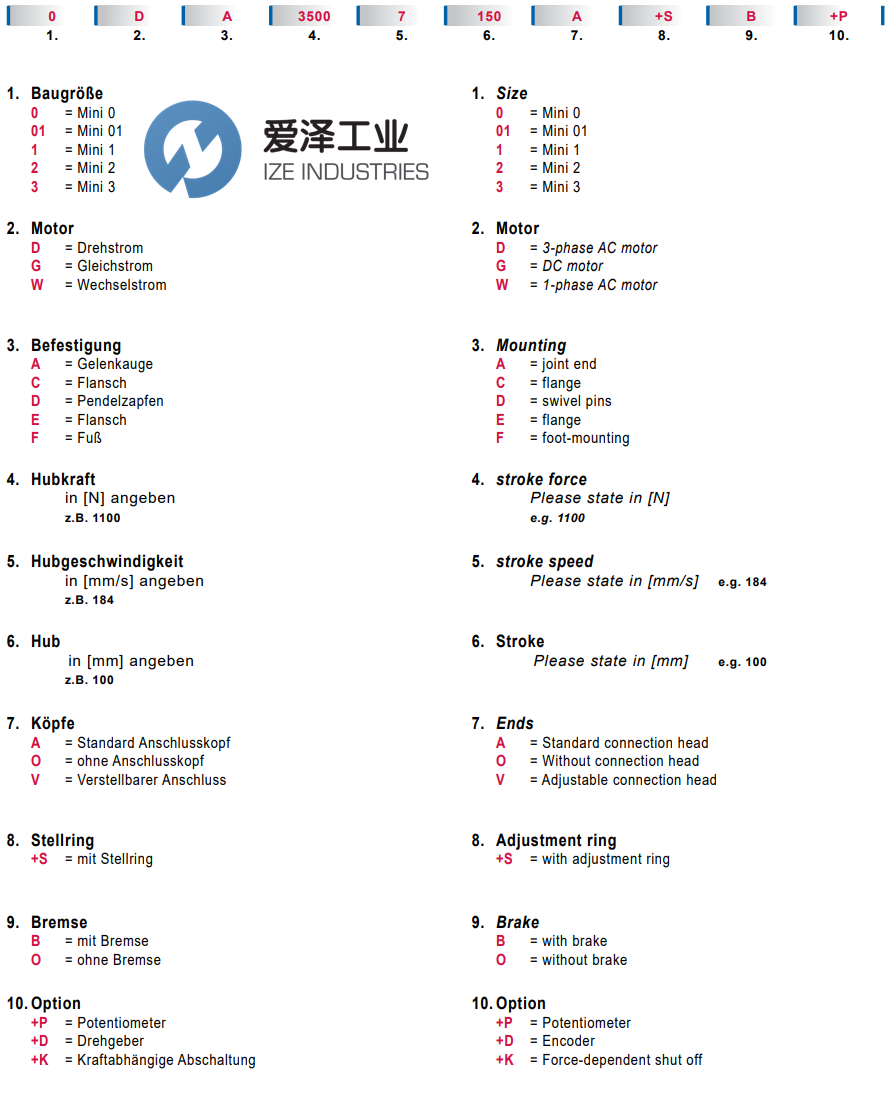

FRAMOMORAT執行器MINI01系列MINI01D/C1000-15-85-V+S/B (8-2001-PC01)技術參數及選型
