VOEGTLIN是一家瑞士精密流量儀表開發商。在過去的 35 年中，為流量測量和控制任務提供高價值的產品和解決方案。用于氣體的質量流量計和質量流量控制器具有數字和模擬輸出以及 IP67/NEMA6 和 ATEX 保護，適用于廣泛的應用，包括：
氣體分析
實驗室設備
制藥/生物技術/生命科學
研究和發展
OEM和其他工業應用和解決方案。
VOEGTLIN流量計red-y smart系列技術參數
PERFORMANCE DATA | |
Media (real gas calibration) | Air*, O2*, N2, He, Ar, CO2, H2, CH4, C3H8 (other gases and gas mixtures on request) |
Response time | Meter (GSM): ± 80ms*; Controller (GSC): ± 500ms* |
Repeatability | ± 0.2% of full scale (according to SEMI standard E56-0309) |
Longterm stability | < 1% of measured value / year |
Power supply | 24 Vdc (18 – 30 Vdc), 15 Vdc on request |
Current consumption Standard | Meter (GSM): max. 100 mA; Controller (GSC): max. 250 mA (GSC with valve type 8 max. 490mA) |
Current consumption Profinet RT?/?EtherCAT | Meter (GSM): max. 125 mA; Controller (GSC): max. 340 mA (GSC with valve type 8 max. 560mA) |
Operation pressure | 0.2 – 11 bar a (3 – 160 psia) / GSC with valve type 4.5 and 8 max. 8 bar a (120 psia) |
Temperature (environment/gas) | 0 – 50°C (32 – 122°F) |
Body Materials | Anodized aluminum, optional stainless steel electropolished |
Seals | FKM, EPDM, optional FFKM |
Pressure sensitivity | < 0.2% / bar of reading (typical N2) |
Temperature sensitivity | 0.025% FS measuring range type per 1°C (<0.012% per 1°F) |
Warm-up time | < 1 sec. for full accuracy |
INTEGRATION & INSTALLATION | |
Output signals analog | 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, 0-10 V, 2-10 V |
Output signals digital | RS-485; Modbus RTU (Slave); LabView-VIs available Option: Profibus DP-V0, DP-V1 / Profinet RT?/?EtherCAT |
Process connection | G?” (BSPP* female) up to 60 ln/min (64 SLPM) |
Inlet section | None required |
Electrical connection | Sub D plug, 9 pole |
Mounting orientation | Any position (consult manufacturer above 5 bar or vertical mounting) |
SAFETY | |
Test pressure | 16 bara (240 psia) |
Leak rate | < 1 x 10-6 mbar l/s He |
Ingress protection class | IP50 |
EMC | EN 61326-1 |
VOEGTLIN流量計red-y smart系列介紹
可靠的技術和行業標準接口使red-y smart系列熱式質量流量計 (MFM) 和質量流量控制器 (MFC) 特別適用于氣體輸送系統和工廠工程應用中的測量和控制。
? 標準化信號可實現與控制系統的簡單連接
? 測量對壓力和溫度變化不敏感
? 所有設備均使用真實氣體進行校準。 這確保了高精度和可重復性。
校準可追溯至METAS標準
? 儀表和控制器易于維修和維護
? 設備具有最小的壓降
? 提供全套配件：電纜、配件等。
? ?Plug & control?使用免費軟件?get red-y?：通過任何PC輕松訪問（無需額外的電子設備）
Reliable technology and industry standard interfaces make the red-y smart series thermal mass flow meters (MFM) and mass flow controllers (MFC) particularly suitable for measurement and control in gas delivery systems and plant engineering applications.
? Standardized signals enable simple connection to control systems
? Measurements are insensitive to pressure and temperature changes
? All devices are calibrated with real gas. This ensures high accuracy and reproducibility.
The calibration is traceable to the METAS standard
? Meters and controllers are easy to service and maintain
? The devices have minimal pressure drop
? A full range of accessories is available: Cables, fittings, etc.
? ?Plug & control? with the free software ?get red-y?: Simple access via any PC (no additional electronic equipment required)

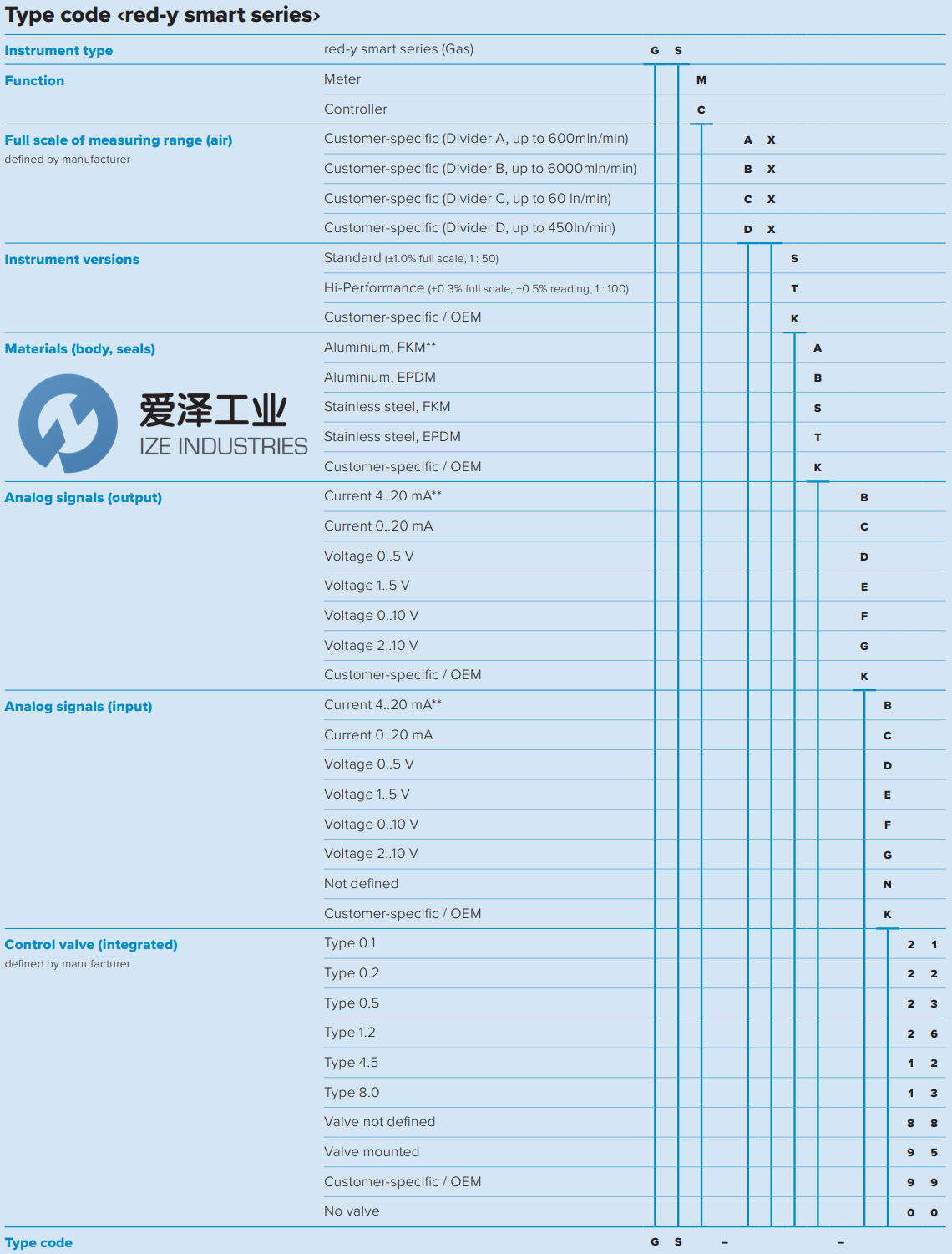

VOEGTLIN流量計red-y smart系列選型
VOEGTLIN流量計red-y smart系列其他常用型號：
VOEGTLIN GSC-C9TA-BB26
VOEGTLIN GSC-C9SS-BB26
VOEGTLIN GSC-C9SS-BB26
VOEGTLIN GSC-D9SS-BB13
VOEGTLIN GSC-C9SA-BB12
VOEGTLIN Mass Flow Meters NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VOEGTLIN流量計GSC-C9SA-BB12的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VOEGTLIN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VOEGTLIN流量計red-y smart系列GSC-C9SA-BB12技術參數及選型
