ROSEMOUNT公司是 Emerson電氣公司的子公司。生產壓力、溫度、液位、DP流量和無線等測量儀器，以及用于氣體分析、液體分析、燃燒測量和火焰和氣體檢測的分析和檢測儀器。
ROSEMOUNT傳感器3900系列技術參數
Measurement range | |
pH | 0 to 14 |
Oxidation reduction potential (ORP) | -1500 to +1500 mV |
Operating temperature | 14 to 212 °F (-10 to 100 °C), automatic temperature compensation from 14 to 212 °F (-10 to 100 °C) |
Maximum pressure | |
212 °F (100 °C) | 100 psig (790 kPa) |
CRN rating: | 60 psig up to 212 °F (100 °C) |
Materials of construction | |
Sensor body | Ryton?: polyphenylene sulfide (PPS) |
O-ring | EPDM |
pH electrode | Glass |
ORP electrode | Glass, platinum |
Solution ground | Stainless steel |
Reference junction | PTFE |
Conductivity | Responds to changes in pH at a minimum conductivity of 0.1 μS/cm when used with the low flow panel. |
Process connection | |
Front facing | ?-in. and 1-in. male national pipe thread (MNPT) |
Rear facing | 1-in. MNPT |
Temperature compensation | Pt-100 |
Weight/shipping weight | 1 lb./2 lb. (0.45 kg/0.9 kg) |
ROSEMOUNT傳感器3900系列介紹
Rosemount 3900 pH/ORP 組合傳感器的雙接點參考有助于傳感器抵抗惡劣環境并有助于延長傳感器壽命。雙液接點可保護參考元素免受有毒離子（如氨、氯、氰化物和硫化物）的影響。兩個傳感器均由多孔Teflon接頭制成。耐用的傳感器設計使得3900在管道、敞開式儲罐或蓄液池中的各種水溶液內都能可靠運行。
The Rosemount 3900 pH/ORP combination sensor's double junction reference aids in the sensor's resistance to harsh environments and helps prolong sensor life. The double junction protects the reference element from poisoning ions-such as ammonia, chlorine, cyanides, and sulfides. Both sensors are made with a porous Teflon? junction. The robust sensor design makes the 3900 reliable in a wide range of aqueous solutions found in pipelines, open tanks or ponds.

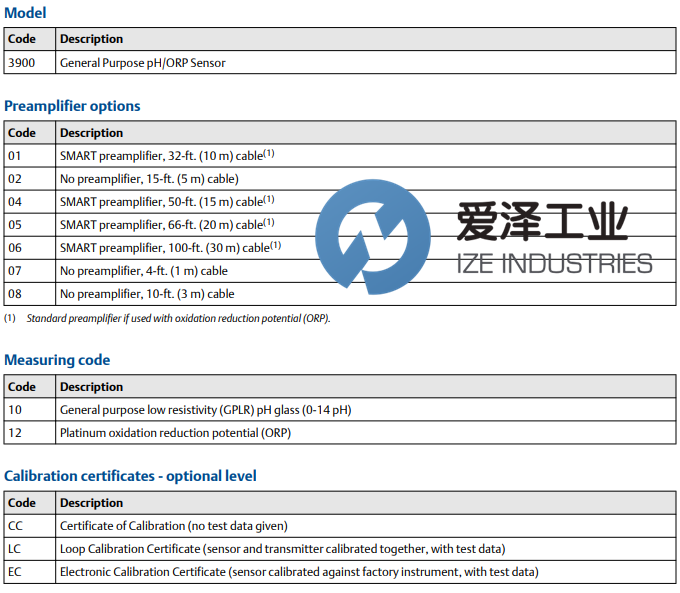

ROSEMOUNT傳感器3900系列選型
ROSEMOUNT傳感器3900系列其他常用型號：
ROSEMOUNT 3900/1/10
ROSEMOUNT 3900/1/12
ROSEMOUNT 3900/2/10
ROSEMOUNT 3900/2/12
ROSEMOUNT Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSEMOUNT傳感器3900/1/10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSEMOUNT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ROSEMOUNT傳感器3900系列3900/1/10技術參數及選型
