SENSONICS公司有40多年的在苛刻環境中提供振動監測、位移監測、地震監測和速度儀表解決方案的經驗，SENSONICS公司提供全系列的傳感器和符合API 670的測量和保護設備以及設計、安裝和調試服務。
SENSONICS振動傳感器PZS4-28E00130技術參數
Ordering code | PZS4-28E00130 |
Mechanical Configuration | 4 - Side Exit |
Electrical Configuration | 2- 2 wire IEPE |
Connector Method | 8E - Integral Connection, 2-pin MIL-C 5015 |
Cable Length | 00 - Specify in metres (e.g 0m) |
Output | 1-100mV/gt10%, |
Thread type | 3- M8x 1.25 |
Multi-Agency Approval | 0 - None |
SENSONICS振動傳感器PZS系列介紹
PZS加速度計由一個高性能剪切模式壓電陶瓷組件組成，可在頂部出口或側面出口密封外殼中使用。PZS系列適用于各種關鍵旋轉機械的振動監測應用，通常安裝在軸承座上以檢測軸承磨損和絕對振動。
該傳感器根據電流回路原理工作，允許使用非常長的互連電纜而不會損失測量精度。標準設備靈敏度為100mV/g，加速度測量范圍超過50g，適用于大多數機器監控應用。
壓電剪切模式傳感器和放大器包含在內部金屬外殼內，該外殼與外部不銹鋼主體電絕緣和熱絕緣。這種布置防止了接地回路消除電氣干擾的機會，此外還最大限度地減少了熱沖擊和基座應變效應。內殼連接到兩線制的0V，因此是一個有效的電氣屏蔽。可通過各種集成電纜和連接器選項進行外部連接。
? 用于工業應用的剪切模式加速度計。
? 高抗噪性的雙外殼。
? 不銹鋼密封外殼。
? 頂部或側面出口選項。
? IEPE 2 線和 +24Vdc / -24Vdc 3 線選項
? 連接器或集成電纜選項。
? 操作頻率范圍寬。
? 適用于高達 140℃的溫度。
The PZS accelerometer consists of a high performance shear mode piezoelectric ceramic assembly available in either a top exit or side exit hermetically sealed housing. The PZS range is suitable for vibration monitoring applications on a wide range of critical rotating machinery and typically mounted on the bearing housing to detect bearing wear and absolute vibration.
The sensor operates on a current-loop principle which permits very long interconnecting cables to be used without loss of measurement accuracy. The standard device sensitivity is 100mV/g with an acceleration measurement range of over 50g which is suitable for most machine monitoring applications.
The piezo-electric shear mode sensor and amplifier are contained within an inner metal enclosure, which is electrically and thermally insulated from the outer stainless steel body. The arrangement prevents the opportunity for earth loops eliminating electrical interference, and in addition minimises thermal shocks and base strain effects. The inner enclosure is connected to the 0V of the two wire system and is therefore an effective electrical screen. External connections are available through a wide range of integral cable and connector options.
? Shear mode accelerometer for industrial applications.
? Dual case for high noise immunity.
? Stainless steel hermetically sealed outer case.
? Top or side exit options.
? IEPE 2-wire and +24Vdc / -24Vdc 3-wire options
? Connector or integrated cable options.
? Wide frequency range of operation.
? Suitable for use up to 140 ?C.

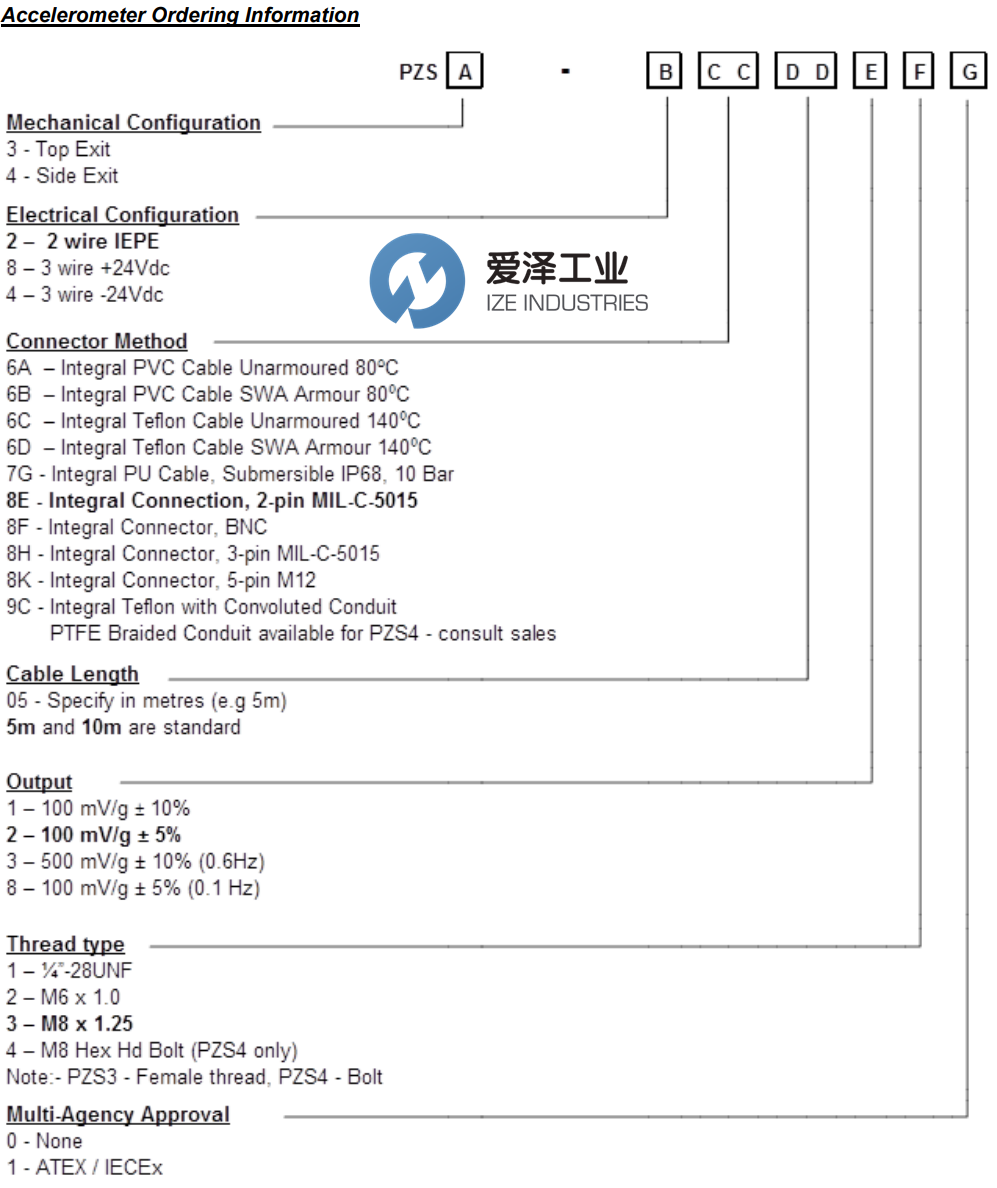

SENSONICS振動傳感器PZS系列選型
SENSONICS振動傳感器PZS4系列其他常用型號：
SENSONICS PZS4-26A05130
SENSONICS PZS4-26B05130
SENSONICS PZS4-26C05130
SENSONICS PZS4-26D05130
SENSONICS PZS4-27G05130
SENSONICS PZS4-28E05130
SENSONICS PZS4-28F05130
SENSONICS PZS4-28H05130
SENSONICS PZS4-28K05130
SENSONICS PZS4-29C05130
