NVENT RAYCHEM專注于用于保護人員、流程和基礎設施的伴熱解決方案。
NVENT RAYCHEM機械溫控器E507S-LS技術參數
Enclosure | TYPE 4, 7, 9, lacquer-coated castaluminum housing, stainless steel hardware |
Entries | One 3/4-in (19 mm) NPT conduit hub |
Set point range | 25°F to 325°F (–4°C to 163°C) |
Sensor exposure limits | –40°F to 420°F (–40°C to 215°C) |
Housing exposure limits | –40°F to 140°F (–40°C to 60°C) |
Switch | SPDT |
Electrical rating | 22 A at 125?/?250?/?480 Vac |
Accuracy | ±6°F (±3.3°C) |
Deadband | 2°F to 12°F (1.1°C to 6.7°C) above actuation temperature |
Setpoint repeatability | ±3°F (±1.7°C) |
Sensor type | Fluid-filled (silicone) bulb and 9 ft (2.7 m) capillary |
Sensor material | 300 series stainless steel |
Screw terminals, 10–14 AWG (2–5 mm2) |
NVENT RAYCHEM機械溫控器E507S-LS產品介紹
nVent RAYCHEM E507S-LS 恒溫器設計用于控制危險場所的伴熱系統。E507S-LS可感應管道或罐壁溫度,可用于控制單個伴熱回路或作為切換多個伴熱回路的接觸器的先導控制。它還可用于指示低溫或高溫報警條件。
特點與優勢
安裝和操作簡單,通過 3/4"/19 mm NPT 導管集線器引入單根電纜
節能、線路感應控制溫控器
可調設定點:25 °F 至 325 °F/–4 °C 至 163 °C
電氣額定值和開關:125/250/480 VAC 時 22 A,SPDT 開關
外殼:NEMA 4、7、9 涂漆鑄鋁外殼,不銹鋼硬件
在長壽命期間可靠
The nVent RAYCHEM E507S-LS thermostat is designed for controlling heat-tracing systems in hazardous locations. The E507S-LS senses pipe or tank wall temperatures and can be used to control a single heat-tracing circuit or as a pilot control of a contactor switching multiple heat-tracing circuits. It can also be used to indicate low-temperature or high-temperature alarm conditions.
Features & Benefits
Simple to install and operate, single cable entry through 3/4"/19 mm NPT conduit hub
Energy saving, line sensing control thermostat
Adjustable set point: 25 °F to 325 °F/–4 °C to 163 °C
Electrical rating and switch: 22 A at 125/250/480 VAC, SPDT switch
Enclosure: NEMA 4, 7, 9 lacquer-coated cast aluminum housing, stainless steel hardware
Reliable during long life

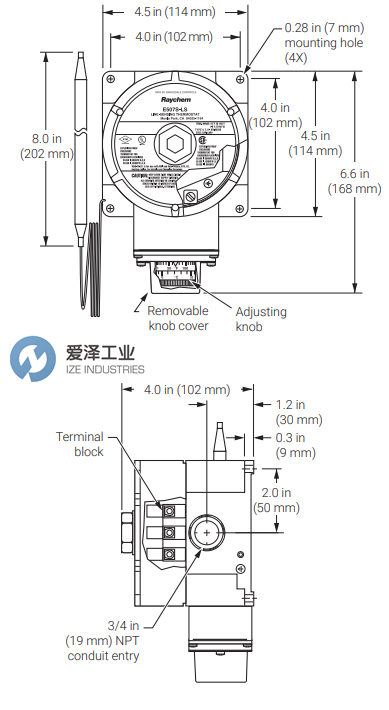

NVENT RAYCHEM機械溫控器E507S-LS技術尺寸
NVENT RAYCHEM機械溫控器常用型號:
NVENT RAYCHEM E507S-LS
NVENT RAYCHEM AMC-1A
NVENT RAYCHEM AMC-1B
NVENT RAYCHEM AMC-1H
NVENT RAYCHEM E507S-2LS-2
NVENT RAYCHEM AMC-2B-2
NVENT RAYCHEM Mechanical Thermostat NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NVENT RAYCHEM機械溫控器E507S-LS的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for NVENT RAYCHEM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
NVENT RAYCHEM機械溫控器E507S-LS技術參數及尺寸
