霍尼韋爾（HONEYWELL）為全球客戶提供相關行業解決方案，涵蓋航空和汽車產品及服務，樓宇、住宅和工業控制技術，以及特性材料。從飛機、汽車、住宅、樓宇、制造工廠、供應鏈到人員，HONEYWELL的技術致力于萬物互聯，創造一個更智能、更安全和更可持續發展的世界。
HONEYWELL的主要產品有：傳感器，繼電器，電機，行程開關，限位開關，壓力開關，溫控儀，點火控制器，變壓器，模塊，放大器，閥，火焰探測器，執行器等。
HONEYWELL限位開關HDLS系列技術參數
Characteristic | Parameter |
Product type | MICRO SWITCH heavy-duty limit switches |
Certifications | UL, CE, CSA, CCC |
Reference standards | UL508, CSA 22.2 #14, EN/IEC60947-5-1, GB 14048.5 |
Housing material | Electrostatic epoxy coated zinc |
Housing type | HDLS Plug-in, HDLS Non-Plug-in |
Contact type | Snap action double break (form Za) same polarity each pole |
Contact material | Silver alloy (standard), optional gold-plated (low energy applications) |
Utilization category | AC-15, A600; DC-13, R300 (electrical ratings on page 5) |
Rated operational voltage (Ue) | 600 Vac, 250 Vdc |
Rated operational current (Ie) | 1.2 A, 0.1 A |
Rated thermal current | 10 A, 2.5 A |
Rated insulation voltage | 600 V |
Rated impulse withstand volt age (Uimp) | 2500 V |
Short circuit protection device (SCPD) type and rating | Class J fuse, rated 10 A, 600 V |
Pollution degree | 3 |
Sealing | IP65/66/67; NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 |
Operating temperature | -12°C to 121°C [10°F to 250°F]; optional: -40°C to 121°C [-40°F to 250 ’F] |
Vibration | 10 g conforming to IEC 60068-2-6 |
Shock (actuator not fitted) | 50 g conforming to IEC 60068-2-27 |
UNSPSC code | 302119 |
UNSPSC commodity | 302119 Switches and controls and relays |
HONEYWELL限位開關HDLS系列介紹
Honeywell的微動開關重型限位開關的模塊化結構允許各種執行器樣式，操作頭，和電路選擇。插件版本大大減少了生產線與高驅動率的停機時間，因?yàn)楦鼡Q開關是在幾秒鐘內完成。底座插座包含所有的電線和導管連接，而帶有操作頭的開關組件很容易組裝到底座上，并由兩個螺釘連接。
它們適用于許多要求苛刻的室內和/或室外環境的應用，在這些環境中，它們可能會受到來自設備、極端溫度、灰塵、飛濺的水、冷卻劑和/或軟管導向的水的沖擊或振動。
Honeywell’s MICRO SWITCH heavy-duty limit switches’ modular construction allows for a wide variety of actuator styles, operating heads, and electrical circuitry options. The plug-in versions greatly reduce downtime on production lines with high actuation rates as replacement of the switch is accomplished in seconds. The base receptacle contains all the wiring and conduit connection while the switching component with operating head easily assembles to the base and is attached with two screws.
They are ideal for many applications with demanding indoor and/or outdoor environments, where they may be subjected to shock or vibration from equipment, temperature extremes, dust, splashing water, coolant, and/or hose-directed water.

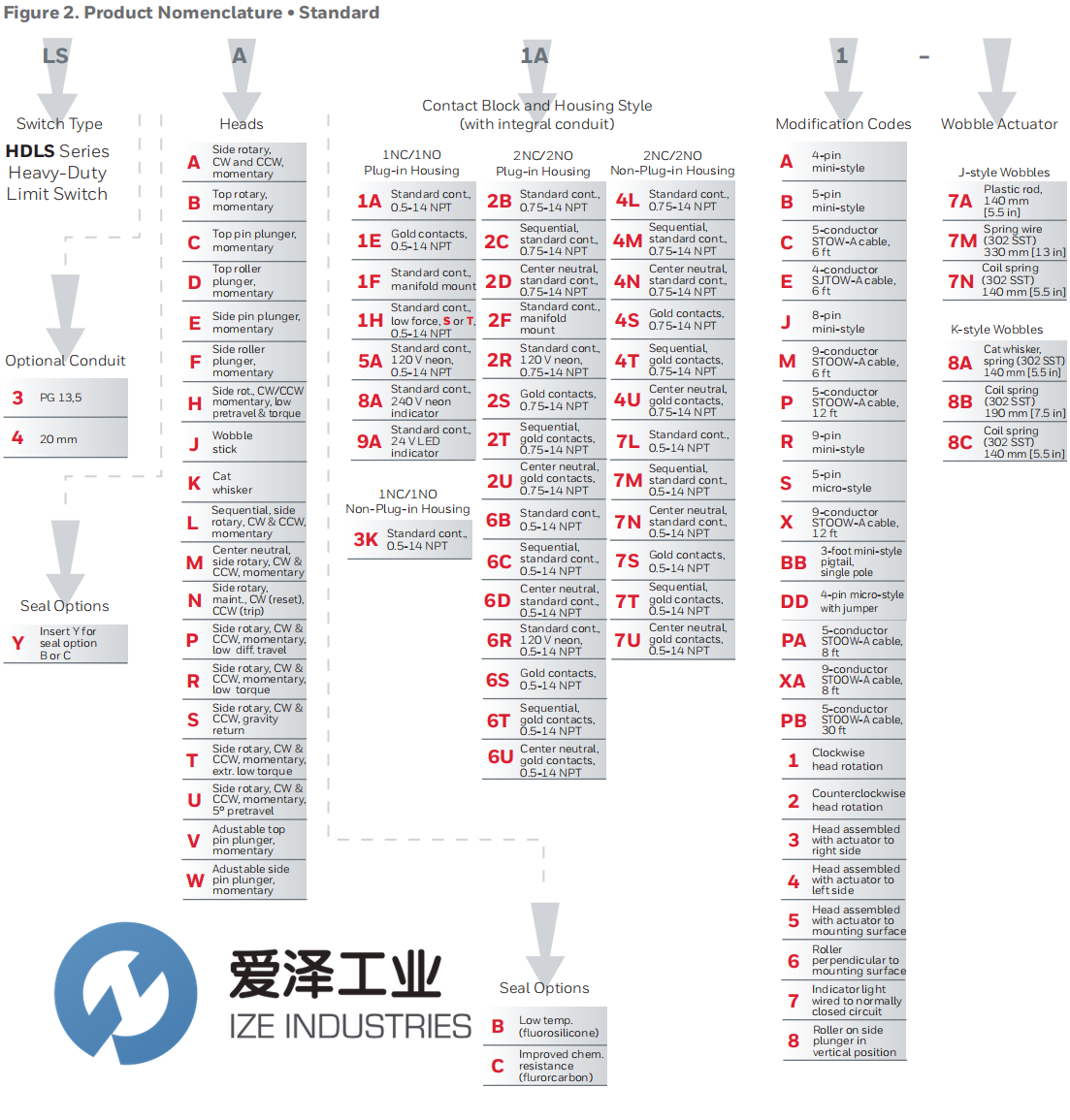

HONEYWELL限位開關HDLS系列選型
HONEYWELL限位開關HDLS系列其他常用型號：
HONEYWELL LSAIA
HONEYWELL LSA1E
HONEYWELL LSASA
HONEYWELL LSABA
HONEYWELL LSA9A
HONEYWELL LSA3K
HONEYWELL LSA2B
HONEYWELL LSA2S
HONEYWELL LSAGB
HONEYWELL LSA6S
HONEYWELL LSA2R
HONEYWELL LSA4L
HONEYWELL LSA7L
HONEYWELL limit switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL限位開關LSA1A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HONEYWELL限位開關HDLS系列LSA1A技術參數及選型
