SKF壓力開關DSA系列技術參數
Technical data | |
Function principle | diaphragm pressure switch |
Lubricant | oil and fluid grease NLGI 000–0, oiled compressed air |
Operating temperature | 10 to 60 °C; 50 to 140 °F |
Operating pressure | max. 45 bar; 650 psi |
Switching pressure range | 1-30 bar; 14.5-435 psi |
Operating voltage | max. 250 V AC; max. 30 V DC |
Operating current | max. 300 mA, min. 2 mA |
Safety class | II (IEC 61140) |
Breaking capacity | max. 125 VA |
Pressure port | DIN 3862 connector or SKF Quick Connector for tube ?6 mm |
Electrical connection | M12×1 or cubical plug |
Switch type | micro switch |
Contact type | change-over |
Mechanical service life | 5 × 106 switching cycles |
Materials: | |
Housing | PA6 6GF30 |
Contact | AuAg25Pt6 |
Membrane | FKM (FPM) |
Protection class | IP 65 |
Dimensions | min. 76 × 120 × 41 mm; max. 83 × 129 × 41 mm; |
Mounting position | any |
SKF壓力開關DSA系列介紹
DSA 壓力開關監控潤滑系統的壓力并幫助評估其功能是否正常。它們監測壓力升高、壓頭和壓力降低等參數，例如在帶有單線油量計量裝置的間歇運行潤滑系統中。開關壓力出廠設置為即插即用操作。包含隔膜的壓力單元和壓力柱塞與微型開關組裝在緊湊的塑料外殼中。外殼由玻璃纖維增強聚酰胺制成，并包含安裝支腳，可快速輕松地安裝。
特點和優勢
易于接線和安裝
簡單高效的設計
具有成本效益的市場驗證解決方案
開關功能可靠的微動開關
轉換開關，適用于常閉觸點（NC）和常開觸點（NO）
開關壓力出廠設置為即插即用操作
可用于 1 至 30 bar（14.5 至 435 psi）的上升和下降壓力
DSA pressure switches monitor the pressure of a lubrication system and help assess it’s proper function. They monitor parameters as pressure buildup, pressure head and pressure reduction e.g. in intermittently operated lubrication systems with single-line oil metering devices. Switching pressures are factory set for plug&play operation. The pressure cell containing the membrane and the pressure plunger are assembled with the microswitch in compact plastic housings. The housings are made of glass fiber-reinforced polyamide and contain mounting feets for quick and easy mounting.
Features and benefits
Easy to wire and install
Simple and efficient design
Cost-efficient market proven solution
Micro switch for reliable switching function
Change-over switch, suitable for both normally closed contact (NC) and normally open contact (NO)
Switching pressure factory set for plug&play operation
Available for rising and falling pressures from 1 to 30 bar (14.5 to 435 psi)

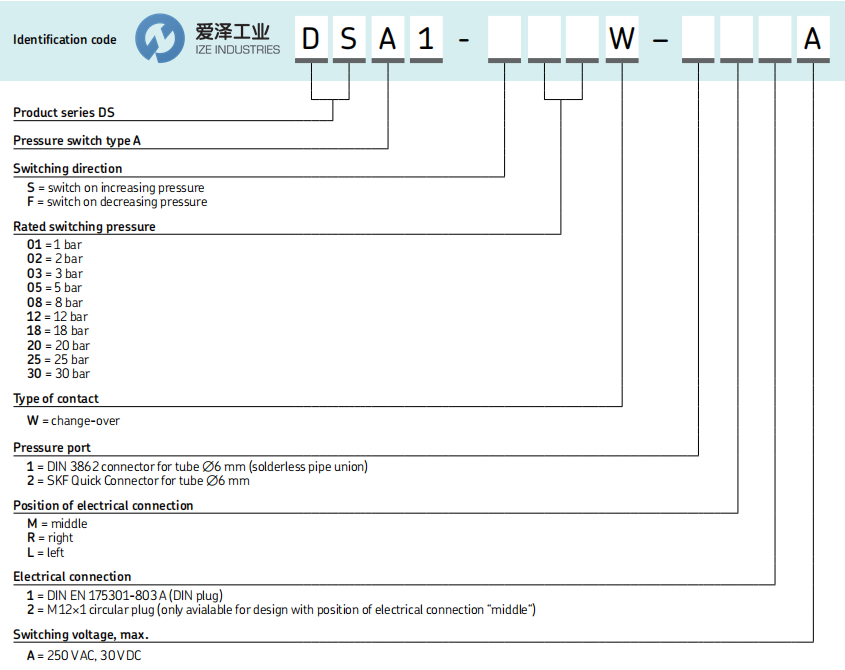

SKF壓力開關DSA系列選型
SKF壓力開關DSA系列其他常用型號：
SKF DSA1-S01W-1M2A
SKF DSA1-S02W-1M2A
SKF DSA1-S03W-1M2A
SKF DSA1-S05W-1M2A
SKF DSA1-S08W-1M2A
SKF DSA1-S12W-1M2A
SKF DSA1-S18W-1M2A
SKF DSA1-S20W-1M2A
SKF DSA1-S25W-1M2A
SKF DSA1-S30W-1M2A
SKF DSA1-S20W-1M1A
SKF DSA1-S25W-1M1A
SKF Pressure switch EW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SKF壓力開關DSA1-S20W-1M2A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SKF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SKF壓力開關DSA系列DSA1-S20W-1M2A技術參數及選型
