OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VEI-8A-09-NC系列技術參數
Technical data | |
General | |
Weight | 0.24 kg (0.53 lbs) |
Installation orientation | Optional |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 2 - 70 l/min (0.5 - 18 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Electrical | |
Type of voltage | DC voltage |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Note: Coils must be ordered separately | |

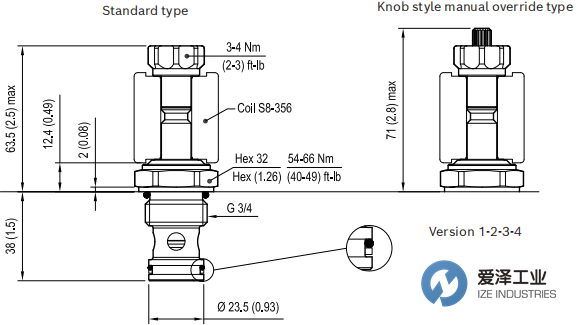

REXROTH OIL CONTROL閥VEI-8A-09-NC系列技術尺寸

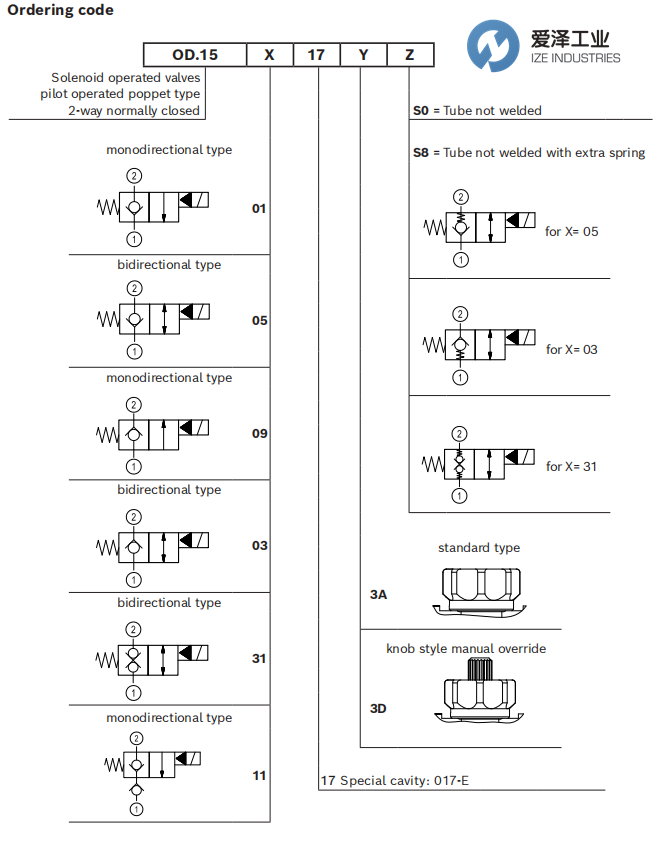

REXROTH OIL CONTROL閥VEI-8A-09-NC系列選型
REXROTH OIL CONTROL閥VEI-8A-09-NC系列其他常用型號：
REXROTH OIL CONTROL OD1501173AS000 R901176045
REXROTH OIL CONTROL OD1501173DS000 R934000679
REXROTH OIL CONTROL OD1503173AS000 R901113664
REXROTH OIL CONTROL OD1503173DS000 R901180257
REXROTH OIL CONTROL OD1505173AS000 R901113673
REXROTH OIL CONTROL OD1505173DS000 R901125249
REXROTH OIL CONTROL OD1505173DS800 R934000846
REXROTH OIL CONTROL OD1509173AS000 R934001038
REXROTH OIL CONTROL OD1511173AS000 R934001072
REXROTH OIL CONTROL OD1531173AS000 R901113682
REXROTH OIL CONTROL OD1531173DS000 R934001120
REXROTH OIL CONTROL valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD1505173AS000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD1505173AS000 R901113673技術參數
