PULSAR流量計PDFM 5.1技術參數
Operating Parameters: | Liquids containing suspended solids or bubbles minimum size of 100 microns, minimum concentration 75 ppm |
Flow Rate Range: | ±0.46 m/s to 12.2 m/s (±0.125 ft/s to 40 ft/s) in most applications |
Pipe Size: | Ultrasonic sensor mounts on any pipe from 12.7 mm to 4.6 m ID (0.5 in to 15 ft) |
Display: | White, backlit matrix - displays flow rate, totalizer, operating mode, and calibration menu |
Power Input: | ? Built-in NiMH battery for up to 18 hours continuous operation |
Analog Output: | ? 4-20mA (500 Ω) when AC powered |
Data Logger: | Programmable 300,000 data point capacity, time and date stamped |
PC Software: | Greyline Logger for Windows Vista or higher. Retrieves, displays, and saves data log files |
Operating Temp. (Electronics): | -23 °C to +60 °C (-10 °F to +140 °F) |
Electronics Enclosure: | Portable, ABS enclosure |
Carry Case: | Rated IP67 with protective molded foam insert |
Accuracy: | ±2% of reading or 30 mm/s (1.2 in/s). |
Calibration: | Built-in 5-key programming with a user-friendly calibration menu. Password protected |
Language Selection: | English, French, Spanish |
Sensitivity: | Adjustable cut-off, Damping: adjustable |
Approvals: | CE, CSA/UL/EN 61010-1 |
PULSAR流量計PDFM 5.1產品介紹
PDFM 5.1 是一款便攜式多普勒流量計，只需夾在管道外部即可進行管道流量測量。其超聲波多普勒技術使其非常適合用作水流量計，特別適用于含有氣泡或固體的臟或難處理的液體，如廢水、漿液、污泥、化學品、粘性液體和磨料。
PDFM 5.1 便攜式多普勒流量計非常適合用于流量故障排除、平衡和檢查永久性流量計的性能?？焖偾乙子诓僮?，傳感器在不到一分鐘的時間內安裝到管道外部，使用內置鍵盤和校準菜單為應用設置流量計。
The PDFM 5.1 is a Portable Doppler Flow Meter that simply clamps to the outside of a pipe to gain pipe flow measurement. Its ultrasonic Doppler technology makes it perfect for use as a water flow meter, specifically for dirty or difficult liquids that contain bubbles or solids, like wastewater, slurries, sludge, chemicals, viscous liquids, and abrasives.
The PDFM 5.1 portable Doppler flow meter is ideal for flow troubleshooting, balancing, and checking the performance of permanent flow meters. Fast and easy to operate, the sensor mounts to the outside of a pipe in less than a minute, using the built-in keypad and calibration menu to set up the flow meter for the application.

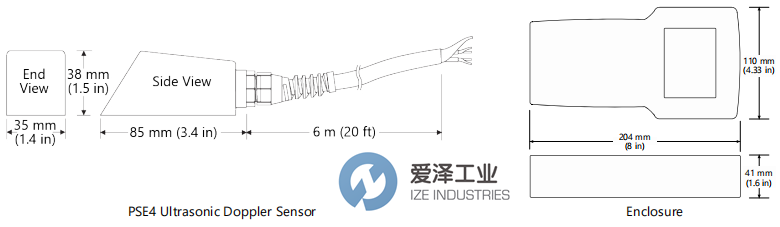

PULSAR流量計PDFM 5.1技術尺寸
PULSAR流量計其他常用型號：
PULSAR PDFM 5.1
PULSAR PTFM 6.1
PULSAR OCF 6.1
PULSAR PTFM 6.1
PULSAR Flow Meter NEW + ORIGINAL+ ONE YEAR WARRANTY
