BELIMO作為一家始創于1975年的瑞士公司，BELIMO博力謀主要為廣大客戶提供應用在加熱，通風及空調等領域的優秀品質的風門和執行器。
BELIMO產品有：風閥執行器，閥門，感測器等。
BELIMO輔助開關S2A-F技術參數
Electrical data | |
Auxiliary switch | 2 x SPDT, 0...100%, adjustable |
Switching capacity auxiliary switch | 1 mA...3 A (0.5 A inductive), AC 250 V (II, reinforced insulation), 1 mA...0.5 A (0.2 A induktiv; L/R = 3.4 ms), DC 110 V (II, reinforced insulation) |
Switching points auxiliary switch | Adjustable across the entire range of rotation 0...1 of the actuator. Presetting with scale possible. |
Connection auxiliary switch | Cable 1 m, 6 x 0.75 mm2 |
Safety data | |
Protection class IEC/EN | II, reinforced insulation |
Degree of protection IEC/EN | IP54 |
EMC | CE according to 2014/30/EU |
Low voltage directive | CE according to 2014/35/EU |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 |
Mode of operation | Type 1.B |
Pollution degree | 3 |
Ambient temperature | -30...50°C |
Storage temperature | -40...80°C |
Ambient humidity | Max. 95% RH, non-condensing |
Servicing | maintenance-free |
Weight | |
Weight | 0.25 kg |
BELIMO輔助開關S2A-F產品介紹
托板通過適應性使彈簧回位執行器積極配合，并將旋轉運動直接轉移到反饋電位器。
開關點可以通過調整撥號盤自由選擇。可隨時讀取當前的開關位置。
輔助開關單元用于指示位置或在任何給定的角度設置下執行開關功能。
輔助開關單元通過適應與空心軸直接連接(LF.., NF..A.., SF..A..) 的執行器。一旦安裝，機組將擰到執行器上。
軸夾安裝在底部一側。
A carrier plate uses adaptation to make a positive fit on the spring-return actuator and transfers the rotary movement directly to the feedback potentiometer.
Switching points can be freely selected with an adjustment dial. The current switch position can be read off at any time.
The auxiliary switch unit is used for signaling the position or for exercising switching functions in any given angle setting.
The auxiliary switch unit is connected directly by means of adaptation with the hollow shaft (LF.., NF..A.., SF..A..) of the actuator. Once it is mounted, the unit is screwed to the actuator.
The shaft clamps mounted on the bottom side.

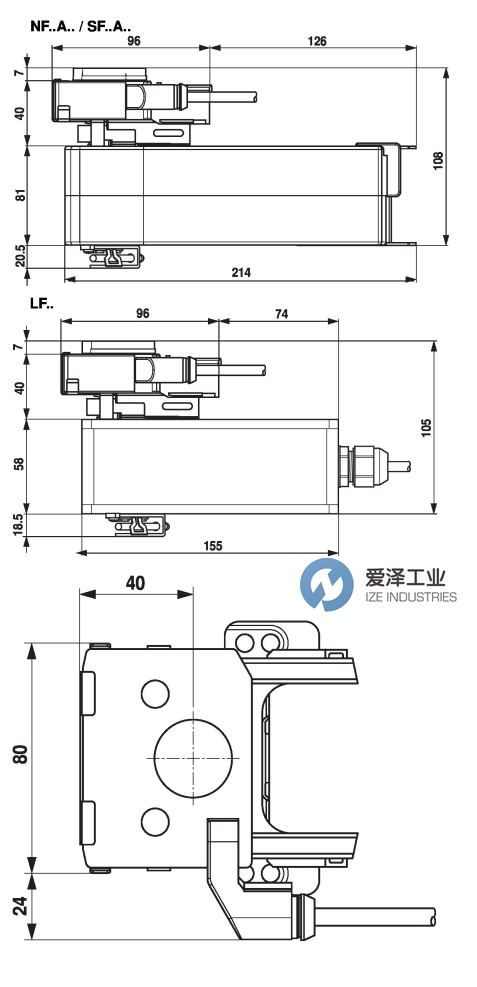

BELIMO輔助開關S2A-F技術尺寸
BELIMO輔助開關其他常用型號：
BELIMO S1A
BELIMO S2A
BELIMO S2A GR
BELIMO S2A-F
BELIMO S2A-H
BELIMO S2A/300 GR
BELIMO S2A/500 GR
