HENGSTLER公司1846 年成立于德國。
公司產品包括計數器、打印機、刀具、繼電器、旋轉編碼器、調節器、線性和角度測量系統等。
HENGSTLER編碼器RI76TD系列技術參數
Housing diameter | 76 mm |
Flange(Mounting of housing) | Tether |
Mounting of shaft | Front clamping ring, Rear clamping ring |
Protection class shaft input(EN 60529) | IP40 or IP64 (front & rear) |
Protection class housing(EN 60529) | IP65 |
Max. speed | for ? 15 ... 25 mm at 70 °C and IP64: max. 3600 rpm |
Starting torque typ. | 3 …. 10 Ncm (depending on version) |
Moment of inertia | approx. 140 …. 420 gcm2 (depending on version) |
Vibration resistance(DIN EN 60068-2-6) | 100 m/s2 (10 - 2000 Hz) |
Shock resistance(DIN EN 60068-2-27) | 1000 m/s2 (6 ms) |
Operating temperature | -25 °C ... +100 °C |
Storage temperature | -25 °C ... +100 °C |
Material housing | Aluminum |
Weight | approx. 320 … 580 g (depending on version) |
Connection | Cable, radial |
Supply voltage | RS422 + Sense (T): DC 5 V ±10 % |
Current w/o load typ. | 60 mA (DC 5 V), 60 mA (DC 10 V), 35 mA (DC 24 V) |
Max. pulse frequency | RS422: 300 kHz |
Pulse width error | ± max. 25° electrical |
Number of pulses | 1 ... 10,000 |
Alarm output | NPN-O.C., max. 5 mA |
Pulse shape | Square wave |
Pulse duty factor | 1:1 |
HENGSTLER編碼器RI76TD系列介紹
通過空心軸?15至42mm
外徑只有76毫米
通過前或后夾緊環便于安裝
工作溫度高達100℃
應用范圍：電機、印刷機、升降機
10000個脈沖“真讀”
通過報警-信號監測狀態
Through hollow shaft ? 15 to 42 mm
Outside diameter only 76 mm
Easy installation by means of clamping ring front or rear
Operating temperature up to 100°C
Applications: motors, printing machines, lifts
10,000 pulses “true-read”
Condition Monitoring through Alarm– Signal

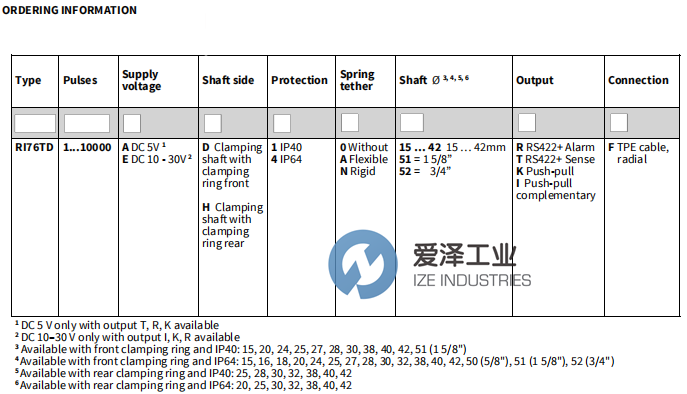

HENGSTLER編碼器RI76TD系列選型
HENGSTLER編碼器RI76TD系列其他常用型號：
HENGSTLER RI76TD/2048AX.4X30TF-KO-S
HENGSTLER RI76TD/1024AD.XA40TX-S
HENGSTLER RI76TD/2048EH.1N40RF
HENGSTLER RI76TD/600ED.4A51RF
HENGSTLER RI76TD/720ED.4A25KF
HENGSTLER RI76TD/1024AD.4X25RX-S
HENGSTLER RI76TD/1024ED.4X25IX-S
HENGSTLER RI76TD/2048ED.4N16IF
HENGSTLER RI76TD/2500EH.1A40KF
HENGSTLER RI76TD/720ED.4A15KF-P0
HENGSTLER RI76TD/2048ED.4X24IF-S
HENGSTLER encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HENGSTLER編碼器RI76TD/2048AX.4X30TF-KO-S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HENGSTLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HENGSTLER編碼器RI76TD系列RI76TD/2048AX.4X30TF-KO-S技術參數及選型
