EtherWAN以太網交換機EMC1600技術參數
Power | |
Input | 100-240VAC, 50-60Hz Internal Univeral PSU |
Consumption | System: 5.4W Max |
Protection | Over current protection |
Mechanical | |
Casing Material | Metal |
Dimension | 440 x 276 x 90mm (W x D x H)(17.32" x 10.87" x 3.54") |
Weight | 14.96 lbs (6.8 kg) |
Installation Type | Rack mounting |
Environmental | |
Operating Temp. | 32 to 113°F (0 to 45°C) |
Storage Temp. | 14 to 158°F (-10 to 70°C) |
Relative Humidity | 5% to 95% (non-condensing) |
Regulatory Approvals | |
ISO | Manufactured in an ISO 9001 facility |
Safety | UL 60950-1 |
EMC Compliances | CE Mark Class A |
Interface | |
LED Indicator | Per Unit: Power Status |
Relay Output | 30VDC/0.6A |
EtherWAN以太網交換機EMC1600產品介紹
EMC1600 是一款16托架機箱，專門設計用于在19英寸機架外殼中容納和供電的選定 EtherWAN 媒體轉換器和以太網擴展器。
熱插拔設計使 EtherWAN Media 的安裝、產品添加和刪除變得容易。 轉換器和以太網擴展器，而不會中斷機箱內的現有通信每個隔間都相互電氣隔離，并帶有保險絲過流保護，因此具有前所未有的可靠性。冗余內部電源提供電源冗余和負載共享。對交流電源輸入的支持使 EMC1600 可以在全球范圍內使用。EMC1600采用堅固的金屬外殼、標準19英寸機架安裝和兩單元高度設計，是互連不同網絡介質和將以太網擴展到其邊界之外的理想選擇。
The EMC1600 is a 16-Bay chassis specifically designed to house and power selected EtherWAN Media Converters and Ethernet Extenders in a 19" rack enclosure.
The hot swappable design enables easy installation, product additions, and deletions of EtherWAN Media. Converters and Ethernet Extenders without interrupting existing communications within the chassis. Each bay is electrically isolated from each other with fused over-current protection resulting is unprecedented reliability. The redundant internal power supplies provide both power redundancy and load sharing. Support for AC power input allows the EMC1600 to be used worldwide. With its solid metal enclosure, standard 19” rack-mount and two-unit height design, the EMC1600 is ideal for interconnecting disparate network media and extending Ethernet beyond its boundaries.

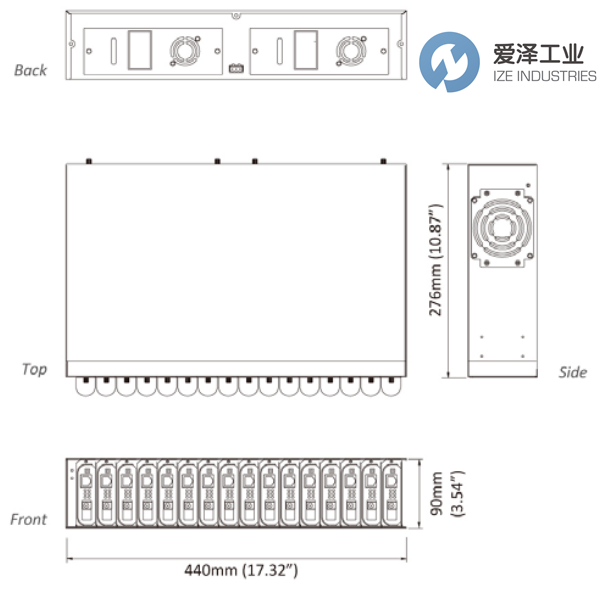

EtherWAN以太網交換機EMC1600技術尺寸
EtherWAN以太網交換機其他常用型號：
EtherWAN EMC1600
EtherWAN EMC1200R
EtherWAN EMC400
EtherWAN EMC1600-RPSA1
EtherWAN EMC1600-RPSA2
EtherWAN Chassis NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EtherWAN以太網交換機EMC1600的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EtherWAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
EtherWAN以太網交換機EMC1600技術參數及介紹
