50年來，BUHLER的員工一直在“分析技術”和“流體控制”的業務領域開發，制造和銷售組件和系統解決方案。
主要經營產品有：
BUHLER氣體采樣探頭
BUHLER取樣氣泵
BUHLER氣體冷卻器
BUHLER濕度傳感器
BUHLER流量計
BUHLER溫度監控
BUHLER油/空氣冷卻器
BUEHLER取樣氣泵4261721199000技術參數
Technical Data | |
Marking: | II 2G Ex h IIC T3/T4 Gb X |
IP rating: | electric IP65 |
Dead volume: | 8.5 ml |
Flow rate (Direct-drive pumps) | 400 L/h |
Ambient temperature Motor: | -20 °C to 50 °C |
Motor voltage | 230 V 50/60 Hz; 1,09/1,17 A |
Pump head position | turned by 180° |
Pump head material | PTFE |
Valve material | up to 100 °C; PTFE / PVDF |
Screw-in connections (depending on pump body) |
|
Weight: | approx. 7.5 kg |
Mounting accessories | incl. mounting bracket and bumper |
BUEHLER取樣氣泵P2.X ATEX系列產品介紹
即使在化學工業、石油化學或生物化學的爆炸性系統中，氣體分析也是安全運行的關鍵。這些領域使用的許多分析過程需要樣品氣體的提取和特殊調節。
采樣氣體泵將采樣氣體從采樣點輸送到調節系統。在這些特殊設計的泵的主要項目是聚四氟乙烯單件套管。
結合泵頭，也是單件的，這種解決方案提供了高抵抗特別具有侵略性的樣品氣體。轉動泵頭可以輸送含有冷凝油的氣體沒有問題。
根據需求，有幾種不同的型號都有不同的驅動器。這些版本允許安裝一個聯軸器法蘭，將泵頭安裝在加熱的殼體內，遠離電機，而電機仍保持在殼體外。
該系列可用于各種EX危險和分類區，流量高達700L/h。
簡單，堅固的設置
易于更換閥門
單件波紋管
用于腐蝕性樣品氣體
用凝析油輸送樣品氣體
壽命長
可選可調旁通閥
聚四氟乙烯和VA泵體的旁通閥
低噪聲排放
帶安裝支架
ATEX版本類別2
Even in explosive systems in the chemical industry, petrochemistry or biochemistry, gas analysis is key for safe operation. Many of the analysis processes used in these fields require extracting and special conditioning of the sample gas.
Sample gas pumps convey the sample gas from the sampling point to the conditioning system. The main item in these specially designed pumps is the PTFE single-piece bellow.
Combined with the pump head, also single-piece, this solution provides high resistance against particularly aggressive sample gas. Turning the pump head allows gas with condensate to be conveyed without a problem.
There are several different models with separate drive, depending on the requirements. These versions allow the installation of a coupling flange to install the pump heads inside heated housings away from the motor whilst the motor remains outside the housing.
The series are available for various EX hazard and classification zones with flow rates up to 700 L/h.
Easy, sturdy set-up
Easy to replace valves
Single-piece bellows
For aggressive sample gas
Conveys sample gas with condensate
Long life
Pump head with optional adjustable bypass valve
Bypass valve for PTFE and VA pump body
Low noise emission
With mounting bracket
ATEX versions category 2

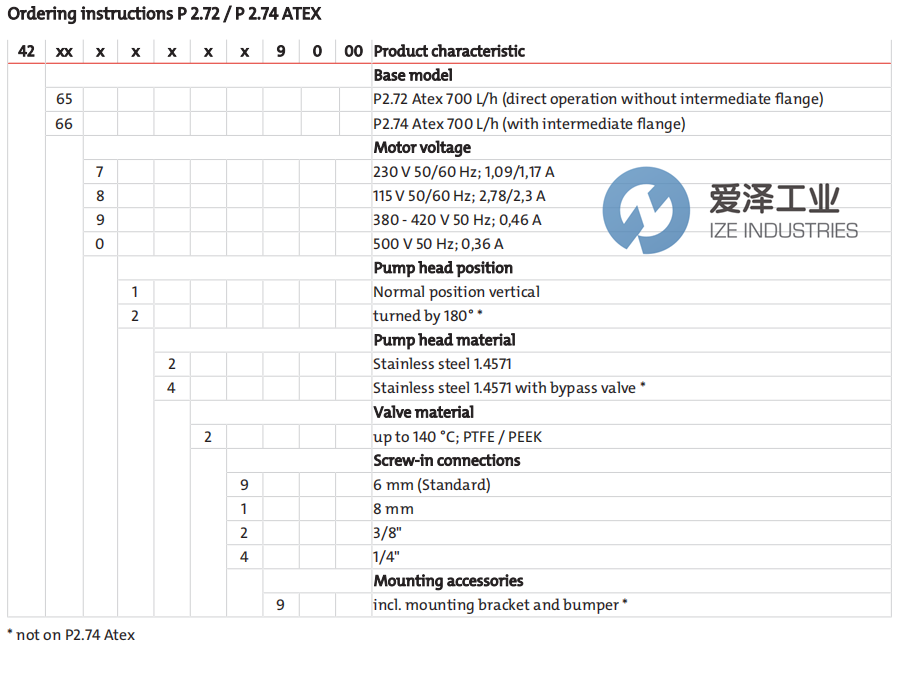

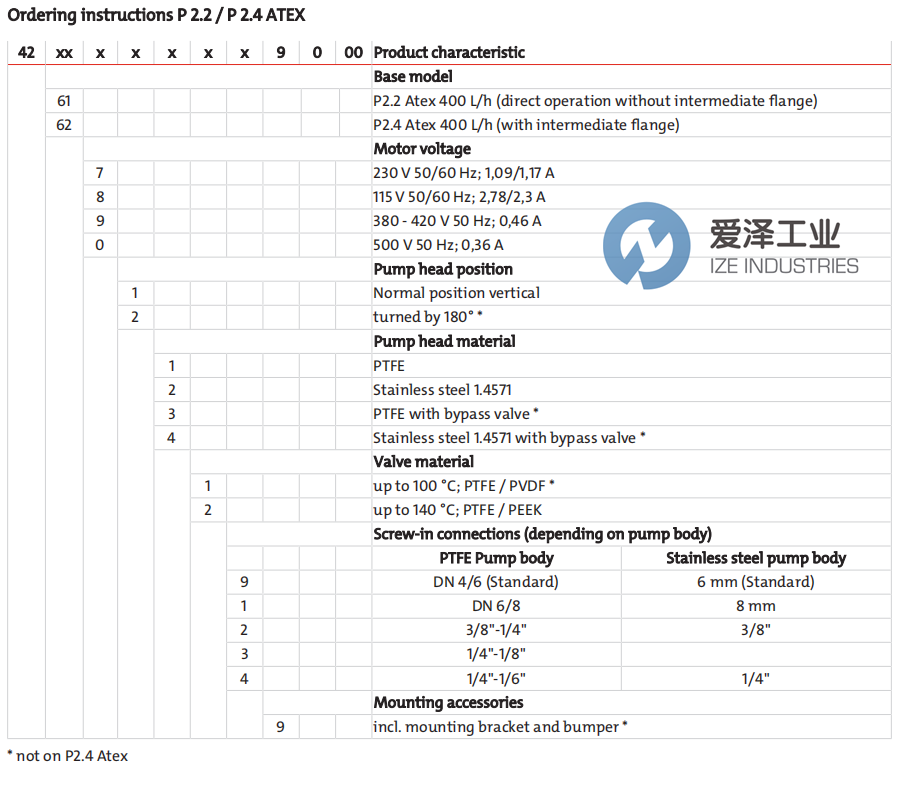

BUEHLER取樣氣泵P2.X ATEX系列選型
BUEHLER取樣氣泵P2.X ATEX系列其他常用型號：
BUEHLER 4261721199000
BUEHLER 4261711199000
BUEHLER 4261821199000
BUEHLER 4261811199000
BUEHLER 4261921199000
BUEHLER 4261911199000
BUEHLER 4261721119000
BUEHLER 4261721129000
BUEHLER 4261721139000
BUEHLER 4261721149000
BUEHLER Sample gas pumps NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUEHLER取樣氣泵4261721199000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUEHLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BUEHLER取樣氣泵P2.X ATEX系列4261721199000技術參數及選型
