NORGREN是氣動產品制造和供應商，為全球客戶提供氣動和流體控制解決方案，生產供應全系列的氣動控制和自動化產 品，持有ISO9001的質量標準證書。同時，諾冠每年設計并生產成千上萬種特殊的產品，以滿足客戶的特定要求，遍布26個國家的公司在當?shù)鼐転榭蛻籼峁┌鈩?dòng)控制回路設計，氣動技術和產品問題的銷售技術咨詢，專門的應用指導，各個層面的技術支持以及在當?shù)剡M(jìn)行常規產品的生產加工。
NORGREN產品適用行業有：軌道交通冶金、包裝、醫療、汽車、紡織、化工、電力、煉鋁、噴墨技術、鋼鐵、水泥等。
NORGREN氣缸M/146系列技術參數
Technical Features | |
Medium: | Compressed air, filtered, lubricated or non-lubricated |
operation: | m/146000, m/146100, m/146200 dual action, with adjustable customization |
Models： | M/146000 with internal guide |
Operating pressure: | 1. . . 8 bar (14... 116 psi) |
Cylindrical diameter: | 16, 20, 25, 32, 40, 50, 63, 80 mm |
Max strokes: | ? 16. . . 40 mm 8500 mm |
Operating temperature: | -30°C + 80°C max. (-22 ... + 176 °F) Air supply must be dry enough to avoid ice formation at temperature below + 2 ° C (+ 35 ° F) |
Material | |
End covers: | aluminium sheet, moulded plastics (? 16) and anodized aluminium (? 20 & 80) |
Yoke: | anodized aluminium, moulded plastics (? 16 & 20) |
carriage, closure and cover: | aluminium diecast |
guide bridge and profile barrel: | anodized aluminium |
sealing strip, wiper and piston seal: | PUR |
cover strip: | PA |
other seals: | NBR |
mounting screw: | A2E |
shim ring: | stainless steel (A2) |
NORGREN氣缸M/146系列介紹
?16……80mm
新型輕質設計擠壓與通用安裝凹槽
經過證明的專利密封系統
防塵作為標準(?25……63mm)
與M/46000系列的互換性
? 16. . . 80 mm
New lightweight design extrusion, universal mounting groove
Verified and patented sealing system
Dust Protection as standard (? 25... 63 mm)
Interchangeability with M/46000 Series

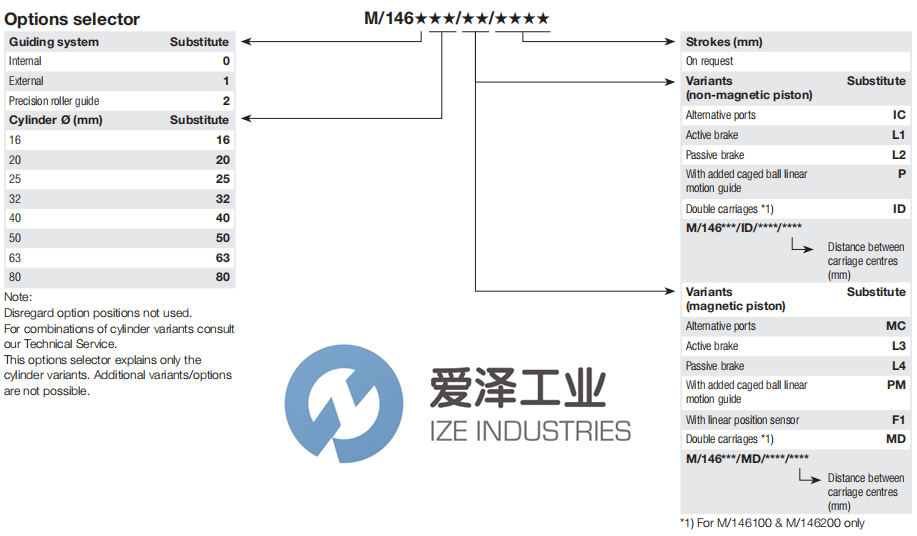

NORGREN氣缸M/146系列選型
NORGREN氣缸M/146系列其他常用型號：
NORGREN M/146150/M/1220
NORGREN M/146150/M/500
NORGREN M/146150/M/600
NORGREN M/146150/M/400
NORGREN M/146150/M/800
NORGREN M/146150/M/300
NORGREN M/146150/M/1000
NORGREN M/146150/M/900
NORGREN M/146150/M/700
NORGREN Cylinder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NORGREN氣缸M/146150/M/1220的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NORGREN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
NORGREN氣缸M/146系列M/146150/M/1220技術參數及選型
