JOVENTA是制造執行器和閥門的荷蘭供應商，旨在滿足智能建筑的需求。它們的功能和選項適用于GTB和GTC系統。因此，它們有助于在設施中實現節能。
JOVENTA風閥執行器SM1.10技術參數
Torque | 16 Nm |
Damper area* | 3.0 m2 |
Running time | 16 s |
Supply voltage | AC/DC24V |
Frequency | 50-60 Hz |
Power consumption | |
Running | 6.0 W |
At end position | 0.6 W |
Dimensioning | 15.0VA / 3.6A @ 2 ms |
Weight | 1.1 kg |
Control signal Y1 | DC0...10V |
Control signal Y2 | 0...20 mA |
Position signal U | DC0...10V |
Angle of rotation/working range | 90° (93° mech.) |
Angle of rotation/limitation | 5°...85° in 5° < steps |
Service lifetime | 60,000 rotations |
Auxiliary switches | 3(1.5)A, AC24V |
Setting range / adjustable | 5°...85° < infinity |
Noise level | 45 d B (A) |
Protection class | II |
Degree of protection | IP 54 (cable downwards) |
Cable aperture connection | M16 x 1.5 |
Mode of action | Type 1 |
Ambient conditions | |
Operating temperature | –20...+50°C / IEC 721-3-3 |
Storage temperature | –30...+60°C / IEC 721-3-2 |
Humidity | 5...95% r.F. |
Service | Maintenance-free |
Standards | Mechanics EN 60 529 / EN 60 730-2-14 |
JOVENTA風閥執行器SPECIAL系列介紹
JOVENTA SPECIAL電動風閥執行器系列設計用于在通風和空調系統中操作風門。緊湊的設計和帶有旋轉角度限制的通用適配器使這款 JOVENTA 執行器具有高度的通用性。
The JOVENTA SPECIAL electric damper-actuator series is designed to operate air dampers in ventilation and air conditioning systems. The compact design and universal adapter fitted with limitation of rotation angle make this JOVENTA actuator highly versatile.

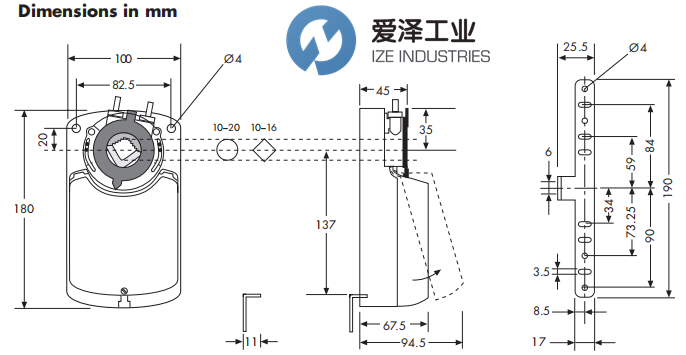

JOVENTA風閥執行器SM1.10技術尺寸
JOVENTA風閥執行器SPECIAL系列其他常用型號：
JOVENTA SA1.12
JOVENTA SA1.12S
JOVENTA SM1.12
JOVENTA SM1.12S
JOVENTA SA2.12
JOVENTA SA2.12S
JOVENTA SA1.10
JOVENTA SA1.10S
JOVENTA SM1.10
JOVENTA SM1.10S
JOVENTA SA2.10
JOVENTA SA2.10S
JOVENTA damper-actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOVENTA風閥執行器SM1.10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JOVENTA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
JOVENTA風閥執行器SM1.10技術參數及尺寸
