德國霍科德股份公司( G.Kromschroder AG ) 是從事工業爐窯燃氣燃燒調控制系統研發及制造的公司之一。公司成立于1865年。
主營產品：
KROM SCHRODER穩壓閥
KROM SCHRODER過濾器
KROM SCHRODER切斷閥
KROM SCHRODER安全釋放閥及壓力開關
KROM SCHRODER電磁直通閥
KROM SCHRODER電磁蝶閥
KROM SCHRODER電動燃氣切斷閥系列
KROM SCHRODER 空氣/燃氣比例閥
KROM SCHRODER電動燃氣調節蝶閥
KROM SCHRODER常溫閥
KROM SCHRODER高溫閥
KROM SCHRODER燃氣燒嘴
KROM SCHRODER高速脈沖燒嘴
KROM SCHRODER帶輻射管空氣預熱式燒嘴
KROM SCHRODER帶調溫風的燃氣燒嘴
KROM SCHRODER燃氣電磁閥VAN系列技術參數
Gas types: natural gas, LPG (gaseous), biogas(max. 0.1 %-by-vol. H2S) or air; other gases on request. |
The gas must be dry in all temperature conditions and must not contain condensate. |
Max. inlet pressure pu: 500 mbar (7 psig). |
Leakage rate: ≤ 500 cm3/h (0.132 gal/h). |
Closing time: quick closing: <?1 s. |
Ambient temperature: -20 to +50°C (-4 to +122°F), for short periods up to +60°C (+140°F),storage temperature: 0?–?60°C (32?–?140°F),no condensation permitted. |
Long-term use in the upper ambient temperature range accelerates the ageing of the elastomer materials and reduces the service life (please contact manufacturer) |
Cable gland: M20 x 1.5. |
Electrical connection: cable with max. 2.5 mm2 (AWG 12) or plug with socket to EN 175301-803. |
Enclosure: IP 65. |
Duty cycle: 100%. |
Power factor of the solenoid coil: cos ? = 1. |
Switching frequency: any. |
Valve housing: aluminium. |
Valve seal: NBR. |
KROM SCHRODER燃氣電磁閥VAN系列介紹及選型
電磁安全閥VAN設計用于監測與可視排放裝置結合使用的氣閥的密封性。它能夠清除多余或泄漏的氣體。電磁安全閥VAN在斷電時打開。
VAN..S、VAN..G配有帶可視位置指示器的閉合位置開關。指示電磁溢流閥是打開還是關閉。
The magnetic relief valve VAN is designed to monitor gas valves for tightness used in conjunction with a visual discharge unit. It enables the purging of excess or leakage gas. The magnetic relief valve VAN is open when it is de-energized.
The VAN..S, VAN..G is fitted with a closed position switch with a visual position indicator. It is indicated whether the magnetic relief valve is open or closed.
KROM SCHRODER燃氣電磁閥VAN系列其他常用型號：
KROM SCHRODER VAN1T15N/NK
KROM SCHRODER VAN1T20N/NK
KROM SCHRODER VAN1T10N/NK
KROM SCHRODER VAN1T15N/NQ
KROM SCHRODER VAN1T20N/NQ
KROM SCHRODER VAN1T25N/NQ
KROM SCHRODER VAN1T15N/NQSR
KROM SCHRODER VAN1T20N/NQSR
KROM SCHRODER VAN1T25N/NQSR
KROM SCHRODER VAN1T25N/NQGR
KROM SCHRODER VAN1T20N/NQGR
KROM SCHRODER VAN1T25N/NWGL
KROM SCHRODER VAN1T15N/NQGL
KROM SCHRODER VAN1T15N/NQGR
KROM SCHRODER Magnetic relief valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KROM SCHRODER燃氣電磁閥VAN1T10N/NK的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KROM SCHRODER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

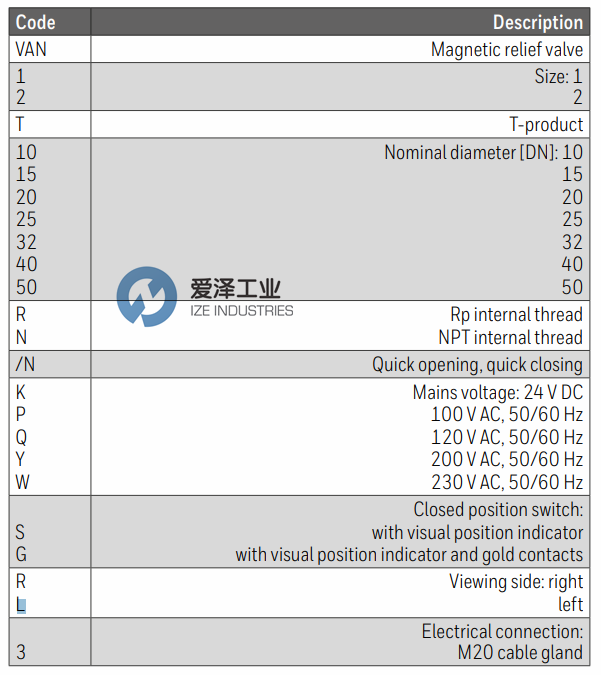

KROM SCHRODER燃氣電磁閥VAN系列VAN1T10N/NK介紹及選型
