ELECTRO-SENSORS公司于1968年美國成立。旨在服務于工業工廠的材料處理和過程控制應用。
ELECTRO-SENSORS公司產品包括軸速傳感器、軸速開關、軸承溫度傳感器、皮帶錯位裝置、振動開關、滑動門和閥門的位置監測器、傾斜開關、電機速度控制器，以及完整的加工廠危險監測系統。
ELECTRO-SENSORS速率計TR400系列技術參數
Specifications | |
Input Power | |
Voltage | 115 VAC, 6 VA @ 50/60 Hz, 1/16Amp, requires external fuse |
Sensor Input | Switch Selectable |
NPN Open-Collector | 2,200 Ohm pull up to 12 VDC, 2.5Volt trigger level |
PNP Open-Collector | 2,200 Ohm pull down,2.5 Volt trigger level |
Logic Level | 2.5 Volt trigger level |
Magnetic Pick-up | 150 mV peak-to-peak minimumsignal, |
Sensor Supply | 12 VDC unregulated, 100 mA max |
External Control I/O | |
Standard Inputs | 3 programmable switch inputs |
Setpoint Outputs(Relays) | 2 or 6 programmable Form C relayson board, rated 250 VAC 5 Amp, 30VDC 5 Amp resistive load |
Optional Analog Output | 1 programmable 4-20 mA or 0-10 VDC output, 12 bit DAC |
Operational | |
Accuracy | Display / Relays: 0.01% ± 1 Digit |
Input Frequency Range | 0.01 Hz to 4,000 Hz |
Response Time | Minimum 0.02 seconds |
Control Range | Default 500 - 1, can be programmed from 9999 - 1 |
Modes of Operation | Speed, Time In Process, Single Channel, Quadrature |
Setpoints | 2 or 6 programmable as “over” or“under” and/or Forward and Reverse |
Display Update Time | 0.5 seconds min, 8 seconds max |
Mechanical | |
Enclosure | ABS Plastic 94V-0 |
Keypad | Polycarbonate Tactile Switch Pad,Chemical Resistant, and Splash Proof |
Display | 4-Digit, 0.3" Height, 7-Segment Displays, 5-Status LEDs |
Operating Temperature | 0° C to +50° C (+32° F to +122° F) |
Dimensions | 3.10" w x 4.85" h x 6.25" l |
Panel Cutout | 2.61" w x 4.31" h |
ELECTRO-SENSORS速率計TR400系列產品介紹
TR400是一個全邏輯控制過程速率計，可以輕松和準確地顯示任何生產速率或過程時間。準確檢測和轉換0.01至4,000Hz信號輸入的能力使TR400成為許多工業應用的廉價解決方案。通過添加可選的繼電器輸出和/或4-20mA模擬輸出，TR400成為一個完整的過程控制和顯示系統?？蛇x的繼電器輸出可以編程為低速或超速，并包括可調延遲在“通電”和輸出激活。4-20mA輸出可以縮放以反映監控范圍的任何區域，包括需要反向輸出的操作。
正交信號解碼使TR400能夠檢測方向以及雙向應用的速度。繼電器和4-20mA輸出可以反向和正向或雙向編程。
The TR400 is a full logic control process ratemeter that can display any production rate or time in process easily and accurately. The ability to accurately detect and convert 0.01 to 4,000 Hz signal input makes the TR400 an inexpensive solution to many industrial applications. With the addition of optional relay outputs and/or 4-20 mA analog output, the TR400 becomes a complete process control and display system. The optional relay outputs can be programmed for under-speed or over-speed, and include adjustable delays at “power up” and output activation. The 4-20 mA output can be scaled to reflect any area of the monitored range, including operations requiring an inverse output.
Quadrature signal decoding gives the TR400 the ability to detect direction as well as speed for bidirectional applications. The relays and 4-20 mA outputs can be programmed in the reverse direction as well as the forward direction, or both directions.

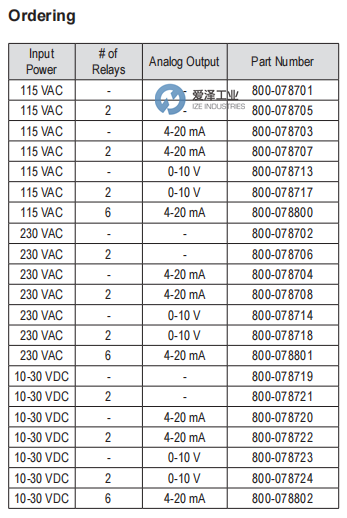

ELECTRO-SENSORS速率計TR400系列選型
ELECTRO-SENSORS速率計TR400系列其他常用型號：
ELECTRO-SENSORS TR400 800-078708
ELECTRO-SENSORS TR400 800-078701
ELECTRO-SENSORS TR400 800-078705
ELECTRO-SENSORS TR400 800-078703
ELECTRO-SENSORS TR400 800-078707
ELECTRO-SENSORS TR400 800-078713
ELECTRO-SENSORS TR400 800-078717
ELECTRO-SENSORS TR400 800-078800
ELECTRO-SENSORS TR400 800-078702
ELECTRO-SENSORS TR400 800-078706
ELECTRO-SENSORS Tachometer NEW + ORIGINAL+ ONE YEAR WARRANTY
