ABB分析儀AX48.0/.5.0.0.0.1.0./STD規格描述
AX48 |
0/ - Second Process Variable (PV2) : No Second Process Variable (Select for PID Control of PV1) |
5 - Enclosure Type : Panel Mount, Universal, 96 x 96 mm, 1/4 DIN |
0 - Advanced Functions & Communications : 2 Isolated Current Outputs, 3 Relays |
0 - Power Supply : 85 ... 276 V AC 45 ... 65 Hz |
0 - Reserved : Reserved |
1 - Manual : English |
0 - Certification : None |
/STD - Special Features : Standard |
ABB分析儀AX480系列介紹
The AX480 dissolved oxygen analyzer is used with 9408 sensing systems to provide accurate measurement of the dissolved oxygen value in a range of water monitoring applications.
Overview
The measured value gathered by the AX480 can be transmitted via fully isolated current outputs. The analyzer incorporates the latest technology to provide a highly reliable, yet flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications. It is rugged and reliable for safe operation in harsh environments, simple to install and use, and requires minimum maintenance. Applications include Municipal waste-water treatment, aerobic effluent treatment in Pulp & Paper and Food & Beverage, and Fish Farming.
Data
Range 0 to 20 ppm and 0 to 200 % saturation
Sensor life indicator
Salinity and atmospheric pressure correction capability as standard
Wall-, pipe- and panel-mount versions with IP 65 / NEMA 4X ingress protection
Continuous in-line diagnostics providing reduction in operating costs
Auto-Jet wash / Air clean - significantly reduces maintenance
Integral P, PI, PID Control: pulse frequency, pulse-length and analog
Real-time clock and log book records alarm events
2 to 4 current outputs and 3 to 5 relay contacts
Versatile power supply options: 85 to 265 V AC or 12 to 30 V DC
High visibility, multi-language display
AX480 溶解氧分析儀與 9408 傳感系統一起使用，可在一系列水監測應用中準確測量溶解氧值。
概述
AX480采集的測量值可以通過完全隔離的電流輸出進行傳輸。該分析儀采用最新技術，提供高度可靠、靈活、功能豐富的設備，可滿足各種過程監控和控制應用。它堅固可靠，可在惡劣環境中安全運行，安裝和使用簡單，并且需要最少的維護。應用包括市政廢水處理、紙漿和造紙和食品和飲料中的需氧廢水處理以及魚類養殖。
數據
范圍 0 至 20 ppm 和 0 至 200 % 飽和度
傳感器壽命指示器
標準的鹽度和大氣壓力校正能力
具有 IP 65 / NEMA 4X 防護等級的墻壁、管道和面板安裝版本
連續在線診斷可降低運營成本
自動噴射清洗/空氣清潔 - 顯著減少維護
積分 P、PI、PID 控制：脈沖頻率、脈沖長度和模擬量
實時時鐘和日志記錄報警事件
2 到 4 個電流輸出和 3 到 5 個繼電器觸點
多種電源選項：85 至 265 V AC 或 12 至 30 V DC
高可視性，多語言顯示

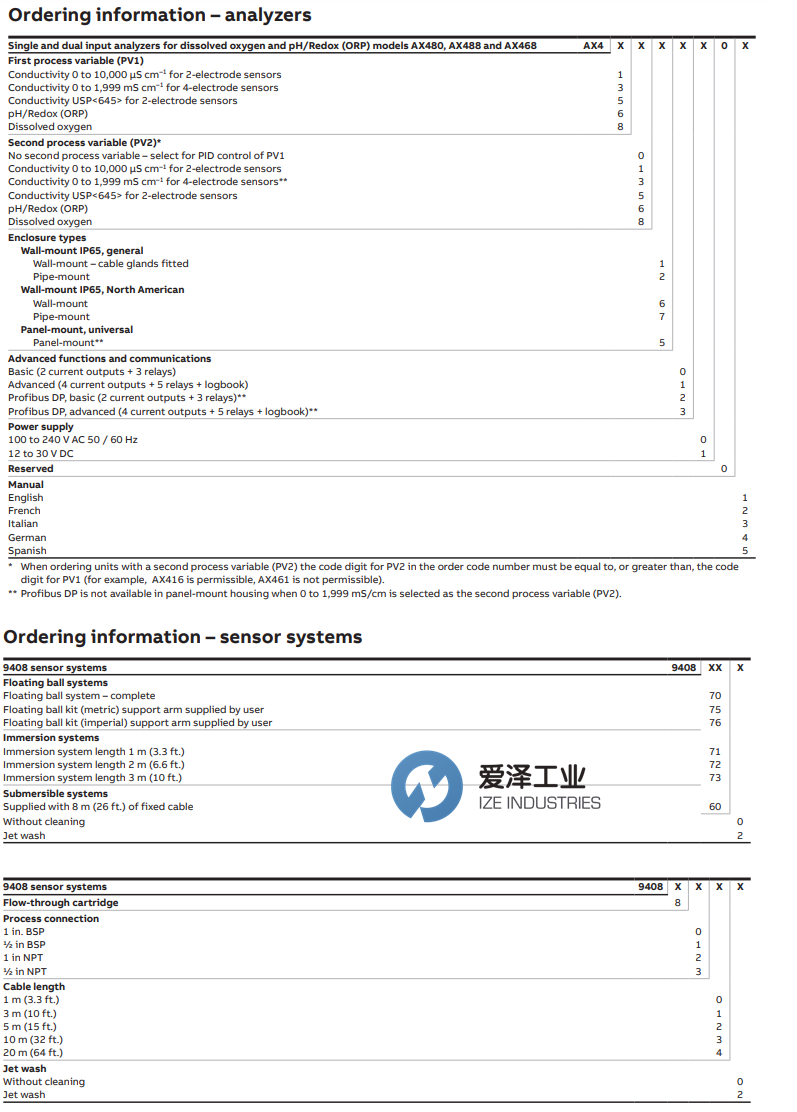

ABB分析儀AX480系列選型
ABB分析儀AX480系列其他常用型號：
ABB AX48.0/.5.0.0.0.1.0./STD
ABB AX480/5010/STD
ABB AX480/70001
ABB AX46050001
ABB AX480/10001
