氫氣危險區域應用的IIC 或 IIB+H2防爆外殼設計
氫氣是地球上最豐富但最危險的氣體之一。它用途廣泛，將成為能源轉型的重要組成部分，但預防爆炸對于整個供應鏈的成功至關重要。
Ex-tech Solution 的 Laurent Thomassin 談到了氫氣爆炸的科學原理，以及氫氣應用的防爆外殼為何與石油和天然氣行業中常見的外殼不同。
Hydrogen is one of the most abundant but dangerous gases on our planet. It has many uses and is set to form a big part of the energy transition, but the prevention of explosions is critical to its success throughout the supply chain.
Laurent Thomassin from Ex-tech Solution talks about the science of hydrogen explosions and why explosion proof enclosures for hydrogen applications are different to those typically found in the oil and gas industry.
什么是氫氣，它是否易燃？
What is hydrogen and is it flammable?
氫是地球上最豐富的元素，能夠通過化學反應產生能量，因此對氫的需求量很大也就不足為奇了。這種無色、無味的氣體，即氫氣（H2），無毒無放射性，用途廣泛。
Hydrogen is the most abundant element on earth and capable of chemical reactions that generate energy, so it’s no wonder that hydrogen is in great demand. This colourless, odourless gas known as H2 is also not toxic or radioactive, and so has many different uses.
近年來，氫能和燃料電池技術已顯示出巨大的潛力，有助于實現向清潔、低碳能源系統的過渡，從而減少溫室氣體排放并限制氣候變化。當氫氣燃燒或用于發電時，唯一的廢物就是水。
然而，在使用氫氣時也存在挑戰。它極易燃燒，被認為是很危險的氣體之一，具有多種獨特性質，如果沒有正確的理解和防爆設備，處理氫氣會很危險。
Over recent years, hydrogen and fuel cell technologies have shown significant potential to enable the transition to a clean, low-carbon energy system that helps reduce greenhouse gas emissions and limit climate change. And when hydrogen is burnt, or used to produce electricity, the only waste product is water.
However, there are challenges when using it. It is extremely flammable and considered one of the most dangerous gases, with several unique properties that make it dangerous to handle without the correct understanding and explosion protection equipment.
如何制造氫氣？
How is hydrogen made?
制造氫氣的方法有很多種，但它們都涉及使用化學、電、熱、核或可再生能源從化合物（含氫物質）中分離出氫氣。
There are many different ways to make hydrogen but they all involve splitting off the hydrogen from a compound (a substance containing hydrogen) using chemical, electrical, thermal, nuclear or renewable energy.

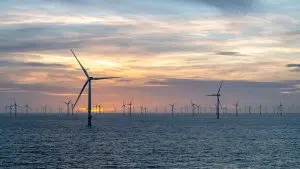

風力發電—制氫
Wind power generation - Hydrogen
這需要大量的能量！
It takes a lot of energy!
水原子電解是通過電流生產氫氣的最佳方法之一，并且被認為是環保的，因為使用風能或太陽能時不會產生二氧化碳。這被稱為綠色氫氣，近年來發展迅速。另一方面，灰氫對環境有害。
Electrolysis of water atoms is one of the best methods to produce hydrogen by electric current and is considered environmentally friendly with no carbon dioxide produced when wind or solar is used. This is known as green hydrogen which has grown over recent years. Grey hydrogen on the other hand is harmful to the environment.
為什么 2025 年氫氣的需求會更大？
Why is hydrogen more in demand in 2025?
更多人認為綠色氫是清潔能源結構和未來燃料的基本組成部分。
Green hydrogen is considered by many as a fundamental part of the clean energy mix and the fuel of the future.
此外，在運輸系統中使用時，它不會產生尾氣排放。然而，整個供應鏈都存在爆炸風險。
Furthermore, when used in transport systems it produces no tail-pipe emissions. However there are explosion risks throughout the supply chain.
氫氣爆炸的科學
The science of hydrogen explosions
與所有其他易燃物質一樣，只有當燃燒三要素的所有三個部分結合在一起時才會發生爆炸。這與氫氣沒有什么不同。請參見右側的火三角圖。
對于氫氣，火災和爆炸會燃燒極熱。但更可怕的是，它燃燒時會產生肉眼看不見的火焰。
氫氣爆炸時也會產生巨大的能量，只需要少量的氣體就能造成重大損害，從而導致熔化并進一步在周圍區域引起火災和爆炸。
氫氣的爆炸范圍非常大，火焰速度很快，這意味著氫氣爆炸導致的壓力迅速增加，這對于防爆規范尤為重要。
Like all other flammable material, an explosion can only occur when all three parts of the ignition triangle come together. That’s no different to hydrogen. See fire triangle diagram on the right.
With hydrogen, the fire and explosion burns with extreme heat. But what is more frightening, is that it burns with an invisible flame (to the human eye).
Hydrogen also explodes with enormous energy, requiring only a small amount of gas to cause significant damage which can lead to melting and further fires and explosions in the surrounding areas.
Hydrogen’s extremely large explosion range and high flame velocity means the resulting rapid pressure increase of hydrogen explosions are of particular importance for explosion protection specifications.
換句話說，氫氣的防爆需要與天然氣的防爆不同。
In other words, explosion protection for hydrogen needs to be different to that of natural gas.
此外，氫氣在化學計量混合時具有非常低的最小點火能量 (MIE)，僅為 0.0017 毫焦耳 (mJ)。這意味著它可以被大多數來源輕松點燃。這比其他可燃氣體（如甲烷）低得多，甲烷的 MIE 通常超過 100 mJ。
根據歐洲 ATEX 進行的風險評估，導致危險區域分類，并因此需要具有適合氫氣的正確設計規格的防爆設備。
Furthermore, Hydrogen has a very low minimum ignition energy (MIE) of just 0.0017 millijoules (mJ) at a stoichiometric mixt. That means it can be easily ignited by most sources. This is significantly lower than other flammable gases, like methane, which typically have an MIE of over 100 mJ.
Risk assessments according to ATEX in Europe, lead to the classification of hazardous areas and the resulting need for explosion proof equipment with the correct design specifications for hydrogen.
氫氣是一種 IIC 氣體，與天然氣不同。但為什么這很重要？
Hydrogen is a IIC gas which is different to natural gas. But why does that matter?
所有已知氣體都根據其最小點火能量 (MIE) 分為幾類，MIE 是指用電火花點燃氣體所需的能量。
IIC 類氣體的 MIE 最低，這意味著該類氣體揮發性極強，容易點燃。 IIC 類氣體包括氫氣、乙炔和二硫化碳。
All known gases are categorised into groups based on their minimum ignition energy (MIE), which is the amount of energy required to ignite the gas with an electrical spark.
The IIC group has the lowest MIE, meaning that the gases in this group are highly volatile and easily ignited. Gases in the IIC group include hydrogen, acetylene, and carbon disulphide.
相比之下，IIA 類包含丙烷和丁烷等氣體，IIB 類包含乙烯和乙醚，這些氣體不太易揮發或點燃，但仍然非常危險。
By contrast, Group IIA contains gases like propane and butane, and Group IIB contains ethylene and ethyl ether which aren’t as volatile or easy to ignite, but highly dangerous, nonetheless.
因此，IIC 組是氣體組中最嚴重的組，標記為可用于 IIC 區域的設備也可以用于 IIB 和 IIA 區域。但是，標記為可用于 IIB 區域的設備只能用于 IIB 和 IIA 區域，不能用于 IIC 區域。
務必使用針對該區域最易揮發氣體進行評級的設備。
The IIC group is therefore the most severe of the gas groups, and equipment marked for use in IIC areas can also be used in IIB and IIA areas. However, equipment marked for use in IIB areas can only be used in IIB and IIA areas, and not in IIC areas.
It’s important to use equipment rated for the most volatile gas in the area.
氫氣危險區域應用的防爆外殼設計
The design of explosion proof enclosures for hydrogen hazardous area applications
典型的防爆 ex d 外殼通常用于容納工廠或加工區危險區域中的電氣設備。Ex d 外殼的工作原理是控制爆炸并防止其點燃周圍區域。前提是氣體首先可以進入外殼。
外殼可容納爆炸并通過法蘭和螺紋消散任何多余的能量。外殼具有冷卻和容納爆炸的火焰通道。
然而，氫氣是一種與工業中大多數氣體（例如甲烷或丙烷）具有不同特性的氣體，這意味著外殼確實需要與大多數危險區域中的外殼不同。
這是因為氫分子較小，可以更容易地穿過狹窄的間隙。因此，防爆外殼的設計需要與 IIA 或 IIB 氣體的設計不同。
A typical explosion proof ex d enclosure usually houses electrical items in a hazardous area at a factory or in a process area. Ex d enclosures work by containing explosions and preventing them from igniting the surrounding area. That’s if the gas can enter the enclosure in the first place.
The enclosure contains an explosion and dissipates any excess energy through its flanges and threads. The enclosure has a flame path that cools and contains the explosion.
However, hydrogen is a gas that has different characteristics compared to most gases in industry such as methane or propane for example, which means the enclosures do need to be different than those seen in most hazardous areas.
That’s because hydrogen molecules are smaller and can travel through narrow gaps more easily. The design of the explosion proof enclosure therefore needs to be different to that of a IIA or IIB gas.
IIB+H2 外殼的間隙比 IIB 組外殼更薄，有時間隙更長。IIC 防爆外殼通常具有圓柱形或螺紋式火焰通道，而 IIA 組和 IIB 組外殼具有扁平火焰通道。
IIB+H2 enclosures have thinner and sometimes longer gaps than Group IIB enclosures. IIC explosion proof enclosures often have a cylindrical or threaded flame-path, while Group IIA and IIB enclosures have a flat flame-path.
在危險區域工作時，還必須注意風險并使用具有正確 T 等級（溫度等級）的電氣設備。
When working in hazardous areas, it’s also important to be aware of the risks and use electrical equipment with the correct T rating (temperature class).

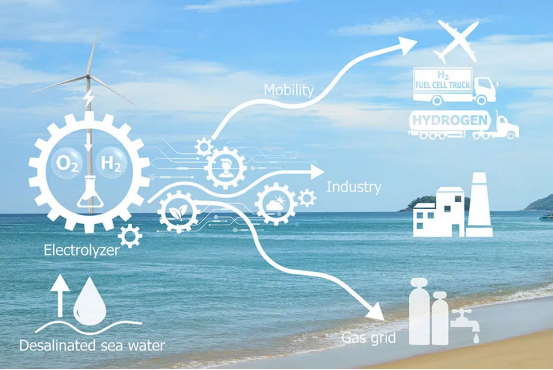

氫氣供應鏈中哪些地方需要防爆？
Where is explosion protection needed in the hydrogen supply chain?
由于氫氣具有危險特性，需要防爆保護的場所遍布整個氫氣供應鏈。以下是一些示例：
? 生產：電解廠、石油、天然氣、煤炭應用、重整廠、儲罐和航運基礎設施。

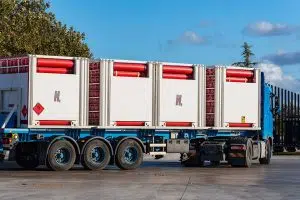

? 存儲和配送：終端、能源供應商、運輸網絡和本地倉庫
? 使用：制造工廠在其過程中將氫氣轉化為燃料、甲醇、氨、鋼鐵、玻璃、能源、水泥、化學品等等。當然還有運輸用戶、將氫氣輸送到天然氣管網以及在沼氣廠的發酵過程中使用氫氣，僅舉幾例。
The locations where explosion protection is needed span the entire hydrogen supply chain due to its dangerous characteristics. Here are some examples:
? Production: Electrolysis plants, oil, gas, coal applications, reforming plants, storage tanks and shipping infrastructure.
? Storage and distribution: Terminals, energy providers, transport networks and local storage depots
? Use: Manufacturing plants converting hydrogen in their process to fuels, methanol, ammonia, steel, glass, energy, cement, chemicals and much more. And of course transport users, the feeding of hydrogen into the natural gas grid and the use of hydrogen for the fermentation process in biogas plants, to name a few.
原始設備制造商 (OEM)、最終用戶和 EPC 正在不斷開發新系統和新流程，以支持近年來快速發展的整個供應鏈中氫氣的生產、供應和使用。
OEMs, end users and EPCs are continually developing new systems and processes to support the production, supply and use of hydrogen throughout this supply chain which has grown rapidly in recent years.
Ex d IIB+H2 防爆外殼選項
Ex d IIB+H2 explosion proof enclosure options
防爆外殼用于保護電氣和控制系統，例如能量分配、過程監控和機械控制。
氫氣防爆外殼必須足夠堅固，以承受重大爆炸，例如，外殼的外壁必須保持足夠低的溫度，以防止點燃外殼外的氫氧混合物。
Explosion proof enclosures are used to protect electrical and control systems, such as energy distribution, process monitoring and machinery control.
The explosion proof enclosures for hydrogen must be strong enough to contain a significant explosion and, for example, the external wall of the enclosure must remain cool enough to prevent igniting a hydrogen-oxygen mixture outside the enclosure.

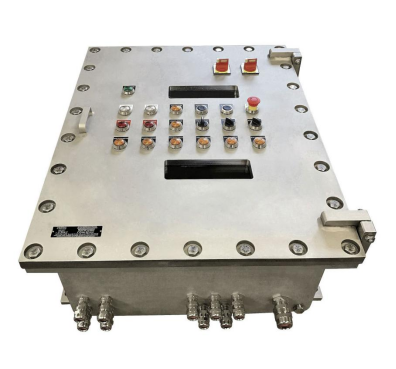

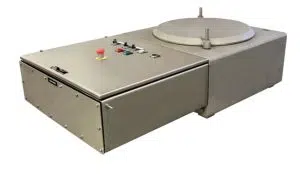

IIB+H2 不銹鋼 Ex d 外殼 – DE8BC
Ex-tech Solution 生產的不銹鋼 DE8BC Ex d IIB + H2 防爆外殼，它們具有出色的耐腐蝕性，適用于海洋/海上應用，并且有多種尺寸可供選擇。它們可以配置為 Ex d 直接入口或 Ex de 組合用于間接入口。如果需要，可以在帶有單獨或公共 Ex e/i 接線盒的框架上組裝多個外殼。Ex-tech Solutions 可以提供帶有 U 組件證書的空外殼，也可以根據客戶需求提供完全組裝的外殼。
IIB+H2 Stainless Steel Ex d enclosures – DE8BC
Here is an example of the stainless steel DE8BC Ex d IIB + H2 explosion proof enclosures from Ex-tech Solution, which have excellent corrosion resistance for marine / offshore applications, and are available in many sizes. They can be configured as Ex d direct entry or as an Ex de combination for indirect entry. If required, several enclosures can be assembled on a frame with separate or common Ex e/i junction boxes. Ex-tech Solutions can deliver the enclosures empty with a U component certificate, or will supply fully assembled according to customer’s needs.

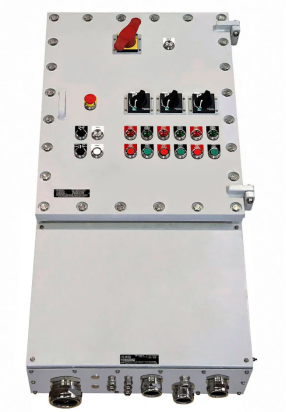

IIB+H2 無銅鋁 Ex d 防爆外殼 – EJB
Ex-tech Solution 的 EJB 系列 Ex d IIB +H2 防爆外殼采用無銅鋁制成，設計用于控制、檢查、信號、自動化、中斷和保護應用。無銅鋁通常因其耐腐蝕性和較輕的重量而被指定。
IIB+H2 Copper Free Aluminium Ex d explosion proof enclosures – EJB
Ex-tech Solution’s EJB range of Ex d IIB +H2 explosion proof enclosures are manufactured in copper free aluminium and designed for use in control, check, signal, automation, interruption and protection applications. Copper free aluminium is often specified for its corrosion resistance and lighter weight.

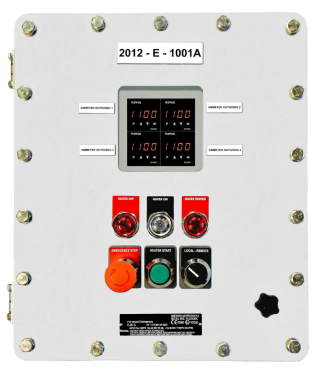

IIB+H2 碳鋼噴漆 Ex d 防爆外殼 – DE8BC
Ex-tech Solution 的 DE8BC 系列 Ex d IIB 或 Ex d II B + H2 防爆外殼采用噴漆碳鋼制造，也可配置為 Ex d 直接入口或 Ex de 組合用于間接入口。這非常適合室內重工業用途。
IIB+H2 Carbon steel painted Ex d explosion proof enclosures – DE8BC
The DE8BC range of Ex d IIB or Ex d II B + H2 explosion proof enclosures range from Ex-tech Solution is manufactured in painted carbon steel and can also be configured as Ex d direct entry or as an Ex de combination for indirect entry. This is perfect for indoor heavy industrial use.

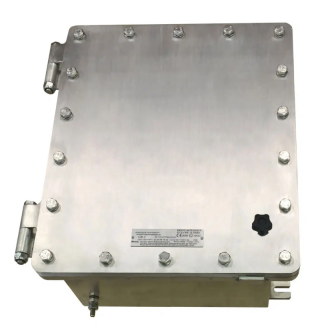

IIB+H2 不銹鋼 Ex d 防爆外殼 – EJB
另一種不銹鋼選項包括 EJB 系列 Ex d IIB + H2 防爆外殼，專為控制、檢查、信號、自動化、中斷和保護用途而設計。如果需要，可以將多個外殼組裝在一個帶有單獨或公共 Ex e/i 接線盒的框架上。外殼也可以空著交付，并附有 U 組件證書，也可以根據客戶要求提供完全組裝好的外殼。
不銹鋼外殼通常被認為是比碳鋼外殼更好的選擇，因為它們更堅固、更耐用、耐腐蝕。
IIB+H2 Stainless Steel Ex d explosion proof enclosures – EJB
Another stainless steel option includes the EJB range of Ex d IIB + H2 explosion proof enclosures which are designed for control, check, signal, automation, interruption and protection use. If required, several enclosures can be assembled on a frame with separate or common Ex e/i junction boxes. The enclosures can also be delivered empty with a U component certificate or supplied fully assembled according to client demands.
Stainless steel enclosures are generally considered to be a better choice than carbon steel enclosures because they are stronger, more durable and resistant to corrosion.
聲明：
- 文章轉載自EX-TECH，由愛澤工業翻譯，如有侵權，請聯系刪除！
- 如有偏頗，歡迎指正！
